DuroMaxx® SRPE

DuroMaxx steel reinforced polyethylene (SRPE) pipe combines the strength of steel with the durability of plastic, resulting in an extraordinarily strong and durable pipe. DuroMaxx meets the long-term structural demands of the most difficult gravity sanitary sewer, storm sewer, irrigation, combined sewer overflow, and glycol and AFFF containment projects.

Strong and Durable Pipe For the Most Difficult Projects

(80) ksi steel reinforcing (SR) provides the strength; pressure rated polyethylene (PE) resin provides the durability. The combination of materials results in an extraordinarily strong and durable pipe. Owners, Engineers, and Agencies choose DuroMaxx® SRPE.

DuroMaxx® SRPE provides the lightweight, low-cost structural advantages of traditional HDPE with none of the disadvantages.  The built-in capacity of the steel reinforced ribs ensures the pipe will not creep or buckle. DuroMaxx can be twice as stiff as non-steel reinforced HDPE pipe, as it is more resistant to the effect of temperature and sunlight.

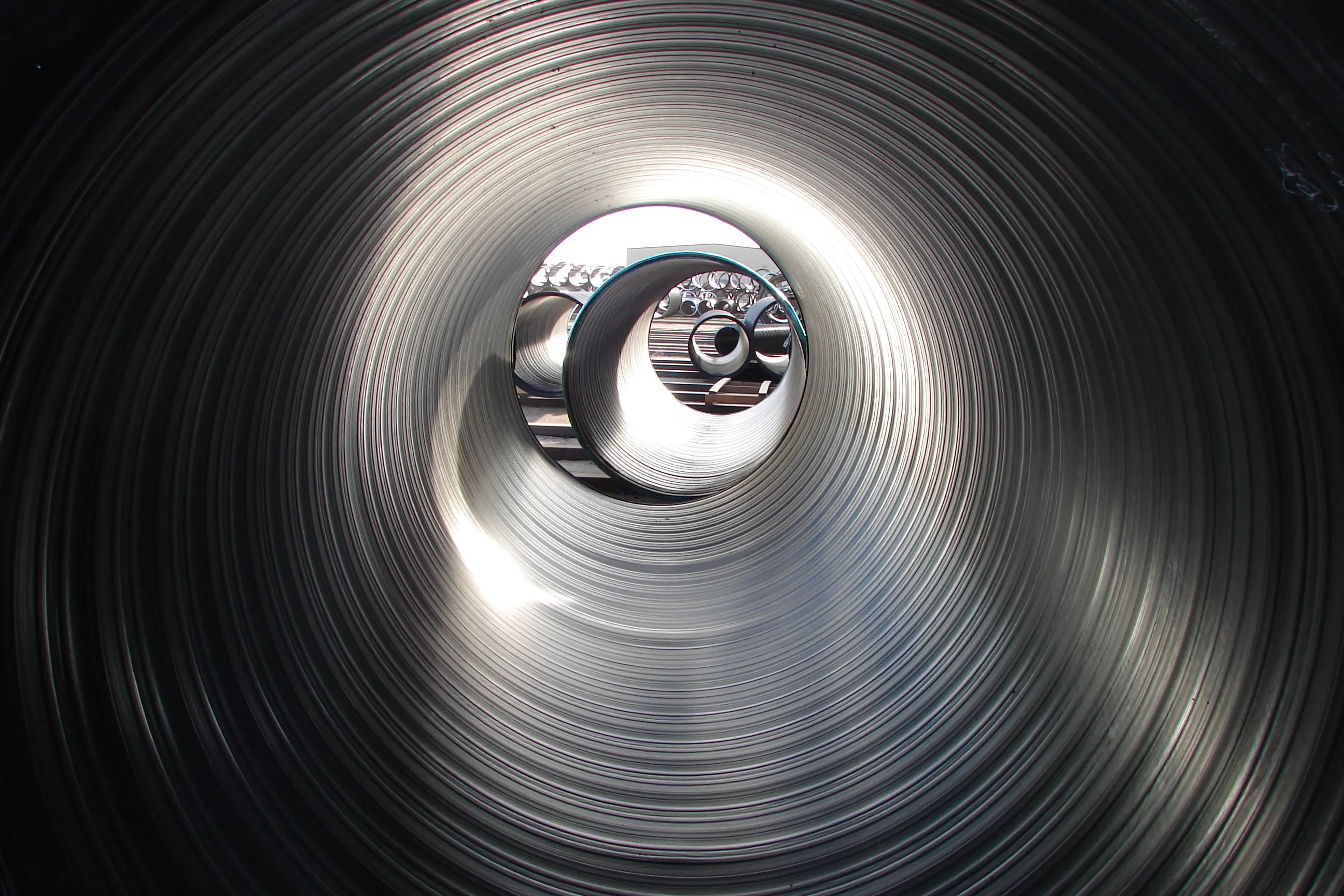

DuroMaxx can be made watertight, and can be used in applications with corrosive soils or abrasive flows. DuroMaxx’s smooth interior provides a pipe that is hydraulically efficient capable of Manning’s “n” values of 0.011 to 0.013 and allows for minimum slope designs and longer runs.

DuroMaxx is available in diameters ranging from 30” – 120” and manufactured in standard lengths of 14’ or 24’. Larger diameter pipe increases storage volume while long pipe sections reduce the number of units to be set and joints to assemble.

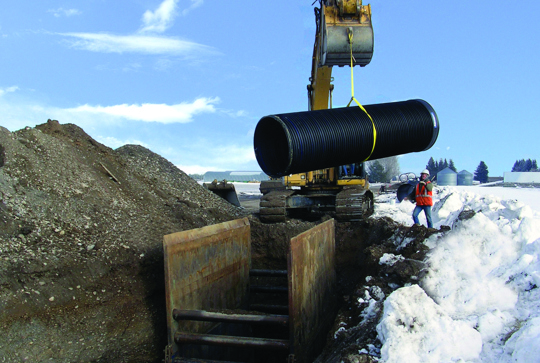

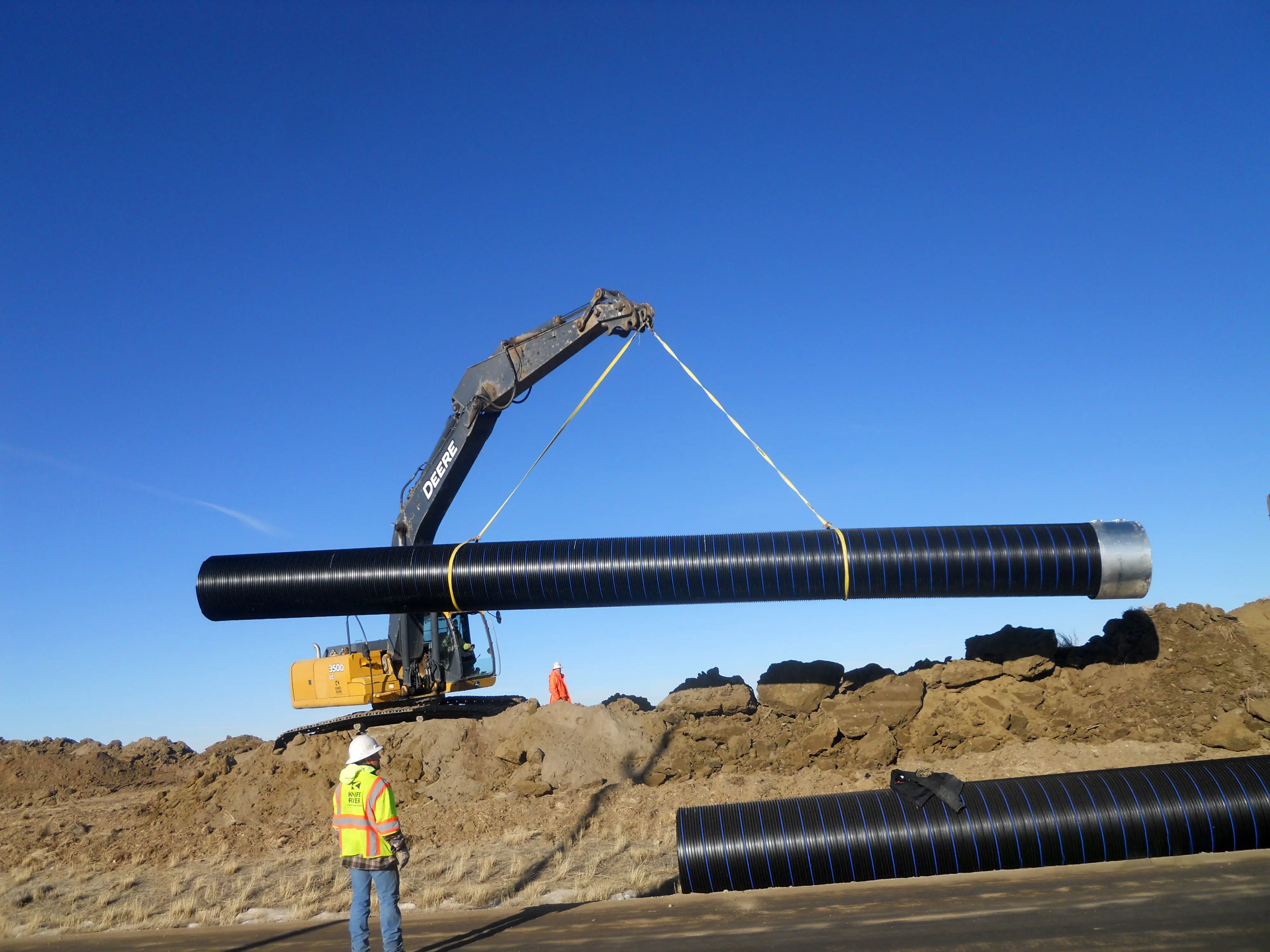

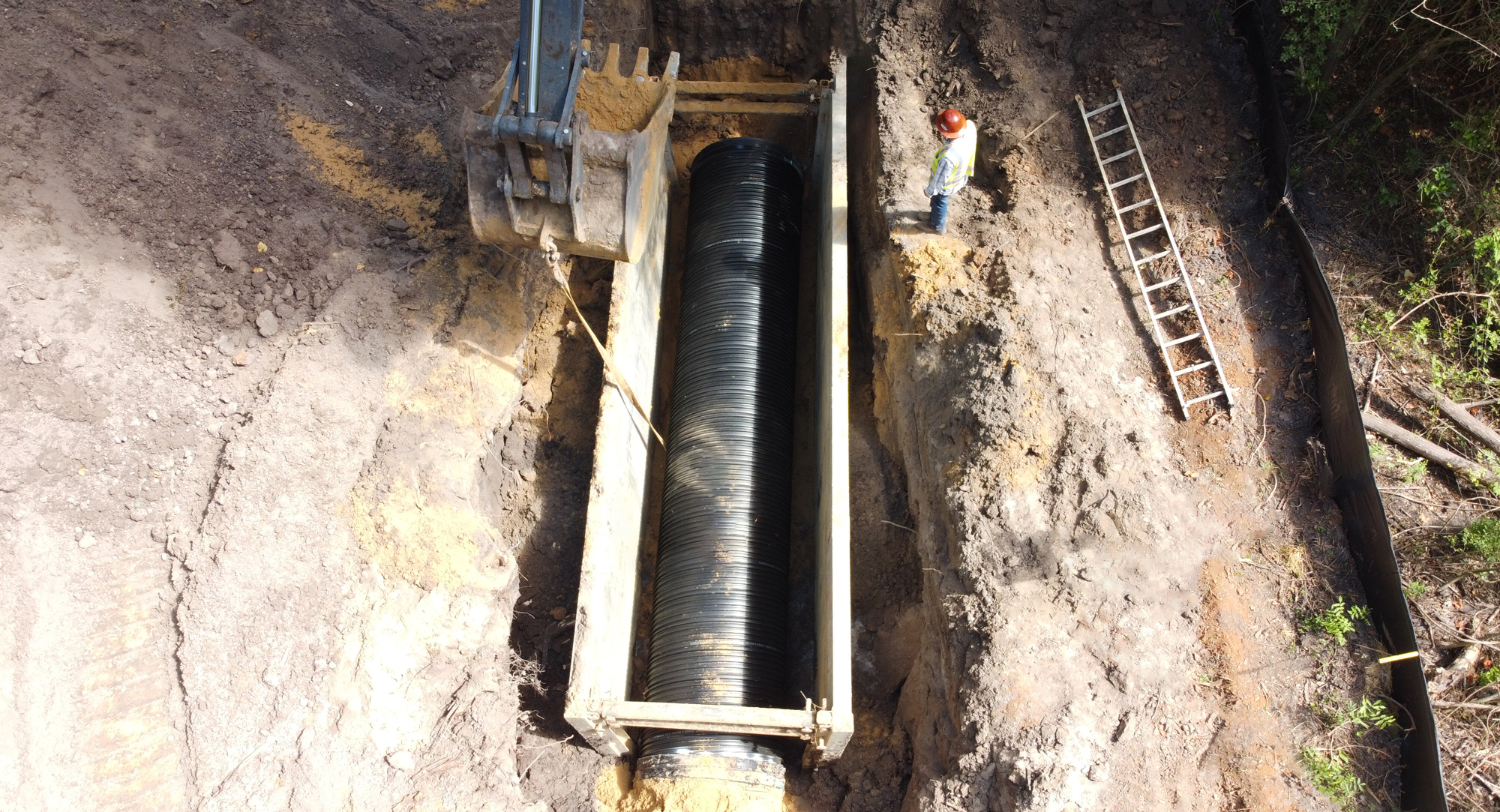

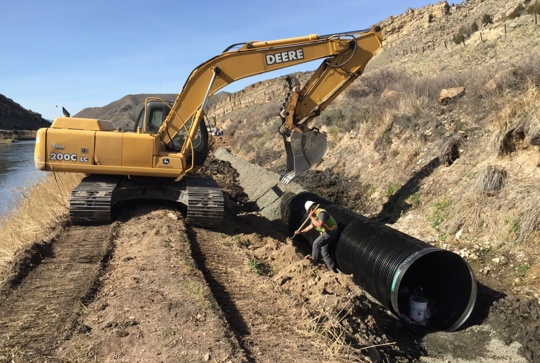

DuroMaxx is lightweight and quickly installed; often eliminating the need to use heavy construction equipment. Longer lengths and easy joint assembly also contribute to costs savings.

DuroMaxx Features and Benefits

FEATURES BENEFITS

HDPE with steel reinforced ribs

Will not creep or buckle; can be twice as stiff as non-steel reinforced HDPE pipe

Corrosion and abrasion resistant

Can be used in acidic/caustic soils, or in applications with corrosive or highly abrasive flows

3 psi soil tight joints, steel reinforced 10.8 psi high performance, and 30 psi welded coupler joints

Joint options for a variety of sites & applications

Smooth interior

Superior hydraulics; allows for minimum slope designs and longer runs

Light weight/longer lengths

Fast installation, costs savings

Availability

Nationwide manufacturing footprint

QuikJoint® with UHP Technology

DuroMaxx® offers the same quality you’ve come to expect but now with an enhanced new joint capable of in-ground psi testing to confirm correct installation and performance.

QuikJoint® Benefits & Features

  • UHP = Ultra High Performance 10.8 psi joint
  • Double gasket, extra-long bell, instant joint testing
  • Triple thick 80-ksi steel reinforced spigot
  • Manufactured in accordance with ASTM F2562 and AASHTO M335 and MP-40
  • Available in diameters ranging from 30-inches to 120-inches

DuroMaxx Properties

  • Available in 30” – 120” diameters
  • Standard lengths are 14’ or 24’ (20' standard lengths for 108" and 120" diameters)
  • Available with a full range of fabricated fittings such as elbows, tees, wyes, slope junctions, and reducers

DuroMaxx Joints

DuroMaxx Applications

  • Gravity sanitary sewer
  • Storm sewer
  • Irrigation
  • Wastewater storage & yard piping
  • Combined sewer overflow
  • Glycol and AFFF storage

Technical information for this product is centrally located in the technical guides section.

Technical Guides
DuroMaxx for Irrigation

Made with HDB pressure rated resins, DuroMaxx provides superior corrosion resistance. Watertight joints, rated at 15 psi, exceed industry standard testing (ASTM D3212). Installation cost advantages are important for remote locations. Versatile fabrication supports unique fittings and components. Excels in short and long-term cost analysis for irrigation applications.

DuroMaxx for Storm Sewers

DuroMaxx drainage pipe is ideally suited for the collection and removal of stormwater from highway, urban, industrial and residential projects. Its unique combination of steel reinforcement and pressure rated HDPE resin allows it to perform like no other drainage pipe on the market. Its 80 ksi high strength steel provides maximum load carrying capabilities with allowable cover limits ranging from 30 to 50 feet. High strength steel provides exceptional shape and deflection control even on warm, sunny days where typical corrugated HDPE drainage pipes fall short. Pressure rated HDPE resin provides unmatched durability. Abrasion and chemical resistance is unaffected by water pH levels unlike reinforced concrete pipe, where abrasion resistance varies with water pH levels. Joint tightness available for all applications - 10.8 psi high performance (HP), 3 psi low head (LH), 30 psi welded coupler (WC); and soil tight (ST) joints available.

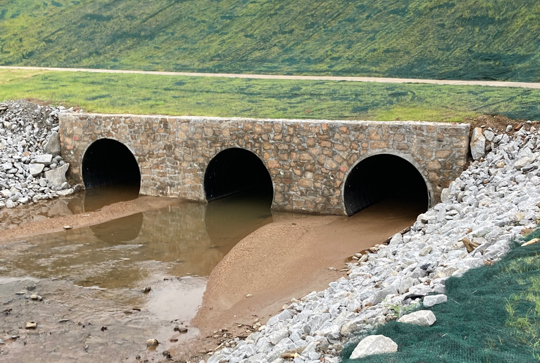

DuroMaxx for Culverts, Canals and Ditch Enclosures

The built-in capacity of the high strength steel eliminates concerns that have long plagued profile wall HDPE pipe. DuroMaxx uses only high quality pressure rated HDPE resin that provides predictable engineering properties including crack resistance, tensile strength and modulus of elasticity, allowing you to meet your long-term service structural needs for canal and ditch enclosures.

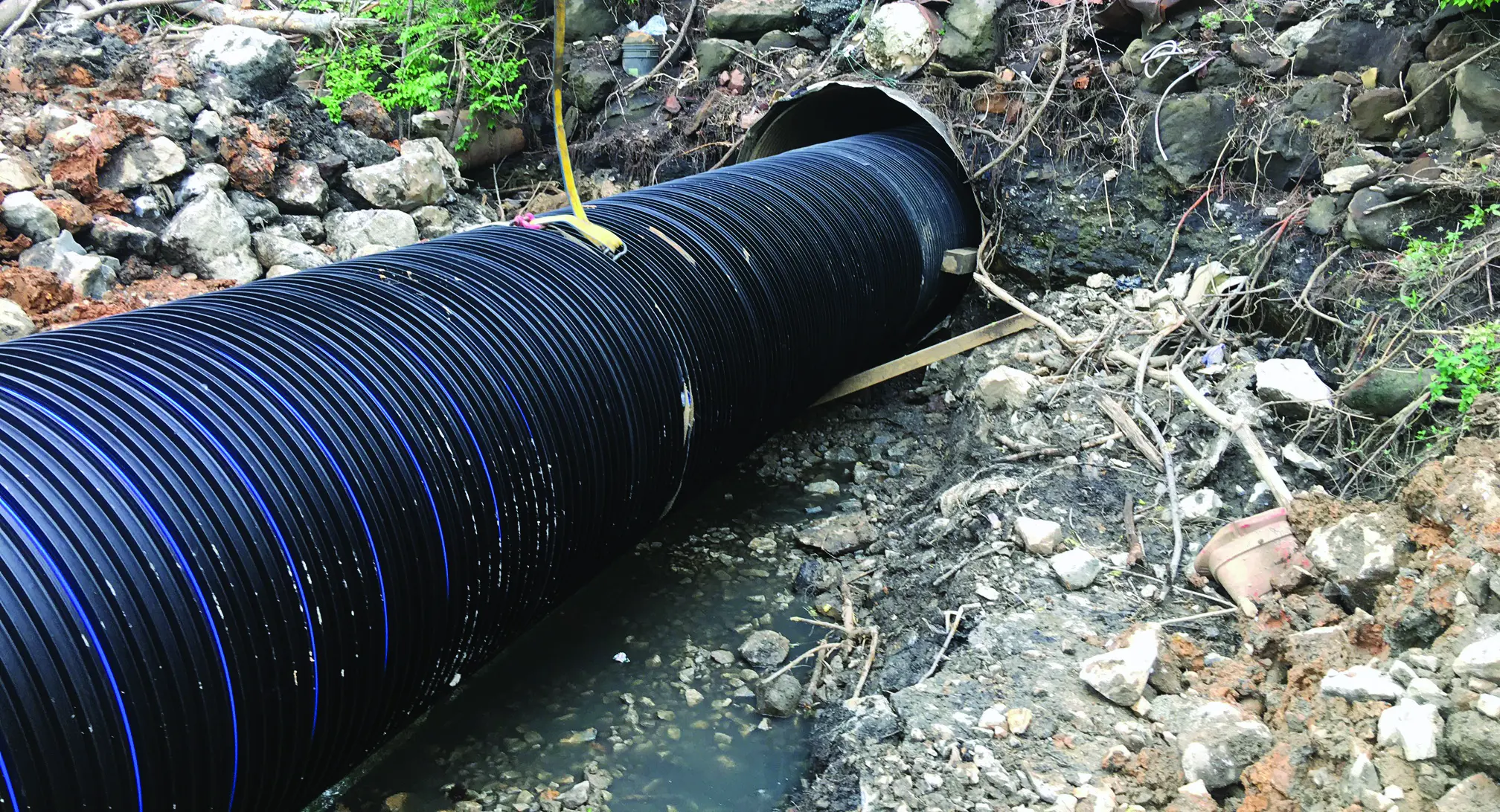

Relining with DuroMaxx® SRPE

Designed with a smooth inner wall for outstanding hydraulic capacity, DuroMaxx® pipe provides the properties necessary for long-term service and performance in the most demanding environments.

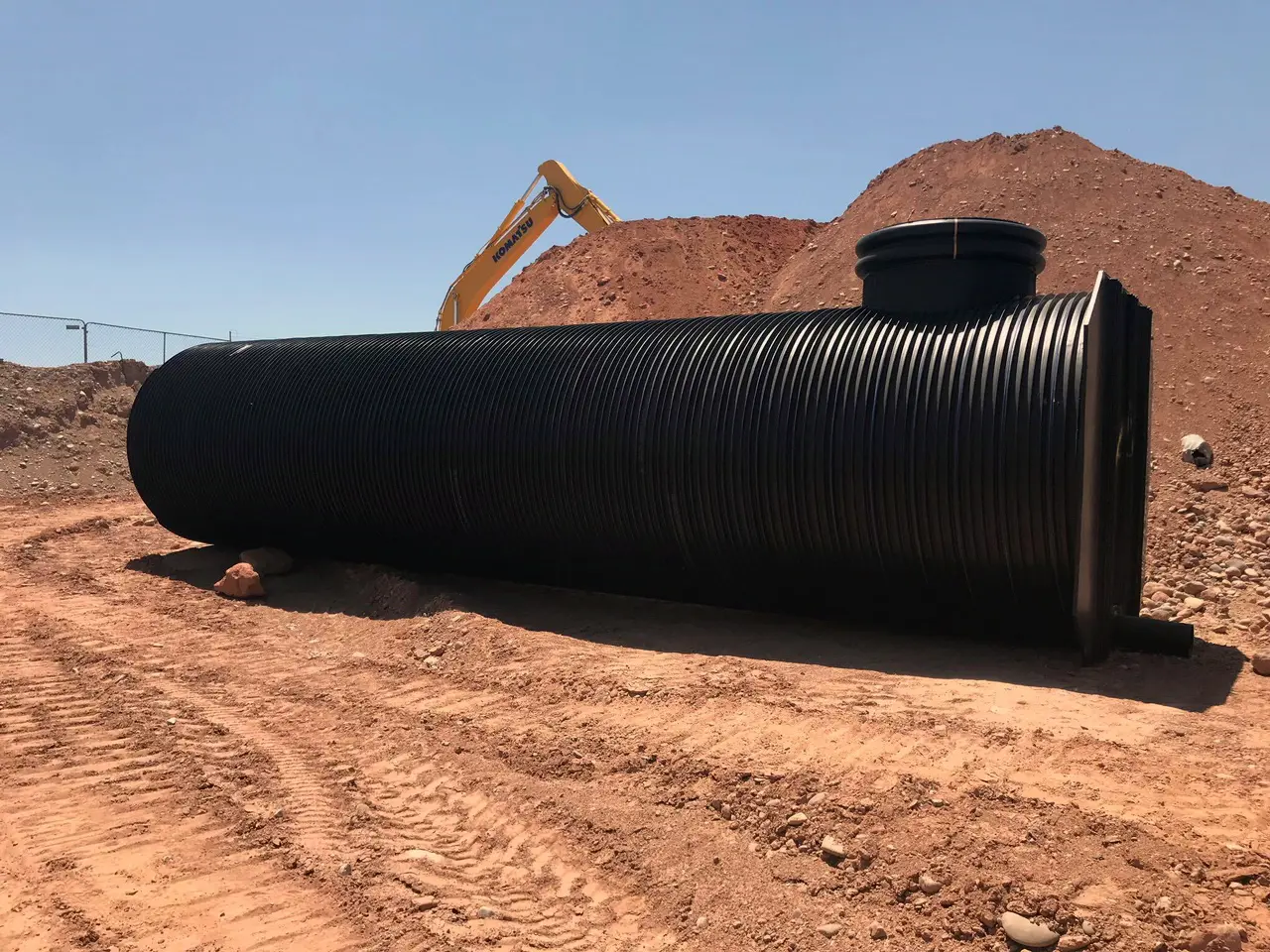

DuroMaxx® SRPE for Combined Sewer Overflow

DuroMaxx can provide storage for combined sewer overflow (CSO) via underground storage tanks. DuroMaxx tanks are durable and water tight, providing a cost-effective way to handle this critical problem. With diameters of up to 120" and flexible design configurations combined with its watertight joints, DuroMaxx is an ideal solution for CSO storage.

DuroMaxx for Glycol & AFFF Containment

Included in FAA drainage standards and with a long history of successful airport installations across the U.S., DuroMaxx SRPE is the ultimate solution for containment of glycol and aqueous film forming foams (AFFF) fluids. Sizes range from 30-inch to 120-inch diameter to store multiple millions of gallons within a surprisingly small site footprint. Its high quality HDB pressure rated PE resin provides excellent resistance from corrosive chemicals, while its high strength steel reinforcement is able to handle heavy aircraft loading and high cover applications. DuroMaxx is Made in America and meets Buy American requirements for federally funded projects.

DuroMaxx® SRPE for Sanitary Sewers

DuroMaxx sanitary sewer pipe provides real answers that help make your job easier. Outstanding performance and value are clearly evident when compared to alternative material options. DuroMaxx provides predictable, high-strength for deep covers, shape and deflection control. DuroMaxx is available in diameters from 30 to 120-inches with a variety of joint options, including:

  • QuikJoint® with UHP (ultra high performance) 10.8 psi technology with steel reinforced bell & spigot that meets ASTM F2562 and AASHTO M335 and MP-40 standards, capable of in-ground psi testing.
  • Welded Coupler (WC) joints capable of 30 psi provide the water tightness required. It is resistant to corrosive effluent, and smooth inner walls allow for minimum slope designs and longer runs.
