Transparent Bridge Deck Forms: Supporting Bridge Preservation Goals and Extended Service Life

Introduction: The Bridge Deck Dilemma

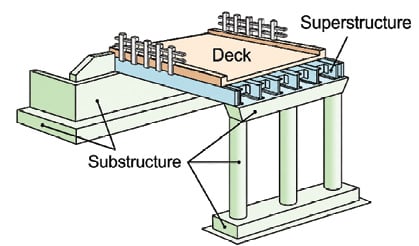

The bridge deck is arguably the most vulnerable component of any highway bridge structure. Exposed to direct traffic loading, freeze-thaw cycling, deicing chemicals and moisture intrusion, bridge decks deteriorate faster than any other primary structural element. According to the Federal Highway Administration (FHWA), concrete deck condition is one of the principal drivers of a bridge’s overall National Bridge Inventory (NBI) condition rating. With more than 235,000 bridges across the United States currently rated in fair condition and more than 42,000 in poor condition, the cumulative cost of deck rehabilitation and replacement represents one of the most pressing challenges in transportation asset management today.

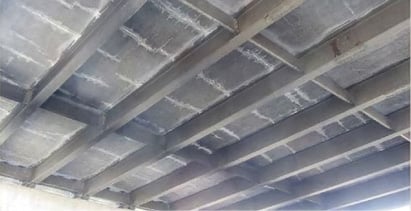

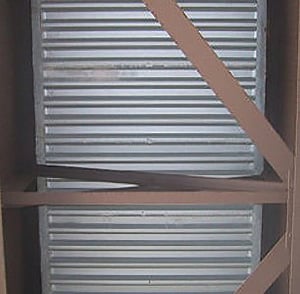

Photos show examples of deck soffit with transverse deck cracking with efflorescence (top) and soffit with corrugated stay-in-place forms (bottom).

For decades, the construction industry has relied on steel corrugated stay-in-place (SIP) forms beneath concrete bridge decks. While these forms speed installation of the deck and provide structural support during casting, they introduce an obvious inspection problem: after the deck is poured, the underside of the concrete slab is hidden behind an opaque metal panel. Any concrete consolidation defects, honeycombing, voids or insufficient cover over reinforcing steel that occur during the initial pour are invisible until they manifest as rusting forms and structural distress (e.g., cracking, delamination, spalling, etc.) during a routine inspection years later.

Transparent bridge deck forms solve the inspection problem. By replacing opaque steel forms with optically clear acrylic panels, inspectors, quality-control personnel and bridge owners can visually confirm the quality of concrete placement while the pour is underway and immediately afterward. For future, routine inspections, bridge owners can see the underside of the deck and accurately report the condition. This capability has significant implications for compliance with the 2022 National Bridge Inspection Standards (NBIS) Final Rule, implementation of the Specifications for the National Bridge Inventory (SNBI), and achievement of bridge preservation goals established in state and local Transportation Asset Management Plans (TAMPs).

This article examines the regulatory framework governing bridge deck inspection, explains the technical features of transparent bridge deck forms that support compliance, and projects the lifecycle cost and service-life benefits that can be expected when bridge owners incorporate transparent deck forms into new construction and deck-replacement projects.

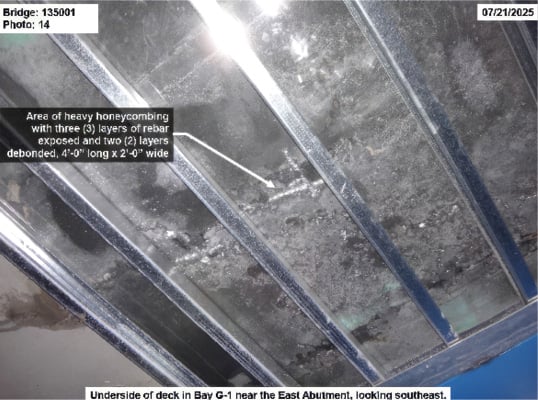

SIP forms obstruct visibility, inhibiting accurate bridge deck condition ratings (top), while transparent bridge deck forms allow clear visibility to the underside of bridge deck (bottom)

The Regulatory Framework: NBIS and SNBI

NBIS—2022 Final Rule

The NBIS are the federal regulations that govern the inspection of all publicly owned highway bridges in the United States. Originally established in 1971 following the collapse of the Silver Bridge, the NBIS have been periodically updated to reflect evolving engineering practice and improved understanding of bridge deterioration. The most recent and comprehensive revision was published in the Federal Register on May 6, 2022, with key provisions phased in through June 6, 2024.

The 2022 NBIS Final Rule made several changes of direct relevance to bridge deck management. Most significantly, it enhanced the definition of a critical finding as “any condition posing an imminent threat to public safety that demands an immediate response,” and it created mandatory timelines for reporting critical findings to the appropriate FHWA Division Office. The rule also introduced a risk-based framework that allows bridge owners to extend routine inspection intervals from 24 months to 48 months for bridges meeting specific risk criteria—provided that the condition data supporting those decisions is reliable and current.

This last point is particularly important. The ability to justify an extended inspection interval depends on the quality and confidence level of the underlying condition data. A bridge deck whose concrete quality was never verified at the time of placement carries inherently greater uncertainty than one in which the initial pour was visually confirmed to be free of consolidation defects.

SNBI

The SNBI replaces the legacy Recording and Coding Guide and represents the most significant update to NBI data collection in more than 50 years. Effective for data collection beginning Jan. 1, 2026, and requiring a complete dataset submission by March 15, 2028, the SNBI introduces 54 new data items, retains 100 existing items and discontinues 20 items from the old coding guide. The SNBI uses a dual-tier rating system: a 0-9 component condition scale for the structural components, and a four-state element-level condition assessment required for all National Highway System (NHS) bridges.

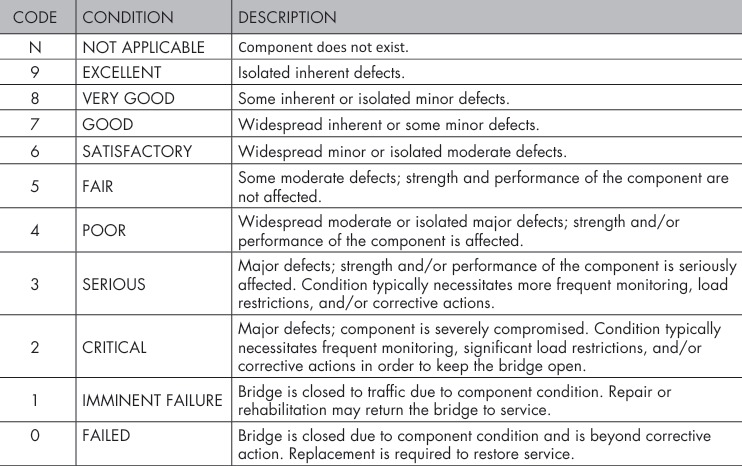

Under the SNBI, the bridge deck condition rating uses a 0-9 scale, representing the condition of the deck as determined from the inspection of all deck surfaces (top, underside and edges):

The SNBI commentary for B.C.01 Deck Condition Rating states: “Use destructive or non-destructive testing results or visual condition indicators of materials covering the surfaces being assessed when top, underside or both surfaces are not visible for assessment. Past inspection reports and repair records may also provide supplemental information to aid in the determination of the condition rating.” With the use of transparent bridge deck forms this level of guesswork can be replaced with visual inspection.

The SNBI’s shift toward more granular, element-level condition tracking is consistent with the broader FHWA philosophy that bridge preservation is more cost-effective than rehabilitation or replacement. But preservation decisions can only be made confidently when the owner knows the actual condition of the structure.

Transparent Deck Forms: Technology Overview

Transparent bridge deck forms are manufactured from a durable, high-clarity acrylic sheet supported by a lightweight steel frame engineered to withstand the static and dynamic loads imposed during a concrete bridge deck pour. The panels are installed in the same manner as conventional corrugated steel SIP forms—spanning between supports and serving as a working platform for the reinforcing steel and cast-in-place concrete above. From the contractor’s perspective, the forming system is familiar, and the installation workflow is substantially unchanged.

The major difference is optical clarity. Where a steel form presents an opaque surface, transparent bridge deck forms allow an observer standing or working below the deck to look directly up through the form material and visually assess concrete placement and consolidation. During the pour, concrete placement supervisors, quality-control inspectors and bridge owners’ representatives can watch the flow of concrete around and between reinforcing bars in real time. After placement, the clear panels provide a window into the underside of the slab that remains available for inspection throughout the bridge’s service life, because, like steel SIP forms, panels remain permanently in place.

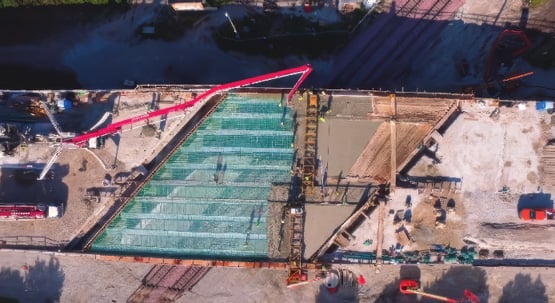

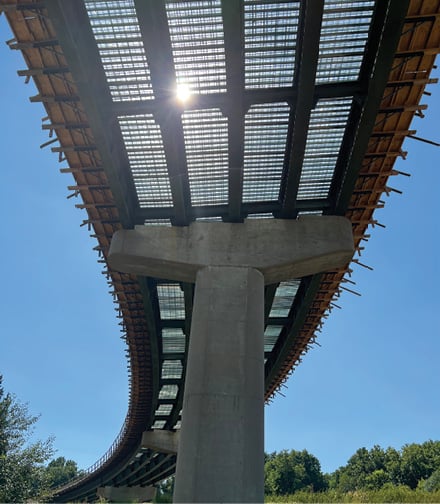

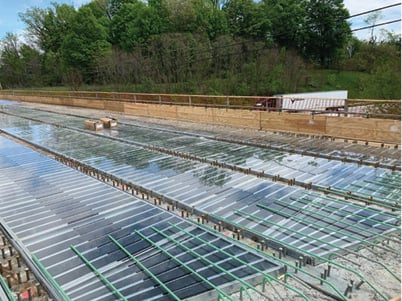

ClearCast® transparent bridge deck forms were installed for Indiana DOT over Indiana Toll Road (Top) and Iowa DOT US 63 over railroad (bottom).

Key technical attributes of transparent bridge deck forms include the following:

• Optical clarity sufficient to distinguish potential voids or honeycombing during and immediately after placement.
• Structural capacity meeting AASHTO and FHWA requirements for stay-in-place forms, with load capacities that parallel or exceed conventional steel SIP form performance.
• UV resistance and long-term durability appropriate for a permanently installed structural element exposed to moisture and atmospheric conditions.
• Panel dimensions and edge profiles compatible with standard bridge deck framing systems, minimizing the need for special detailing or design modifications.
• A forming surface that doesn’t contribute to the corrosion processes that accelerate deterioration when moisture infiltrates behind conventional steel forms.

Contractors report that the visual feedback provided during the pour allows crews to identify and immediately address areas of poor consolidation, reducing the time and money spent on remediation after the fact. Unlike opaque forms, transparent bridge deck forms enable a proactive response in real time, before the concrete has set and while corrections through vibration or supplemental placement are still straightforward.

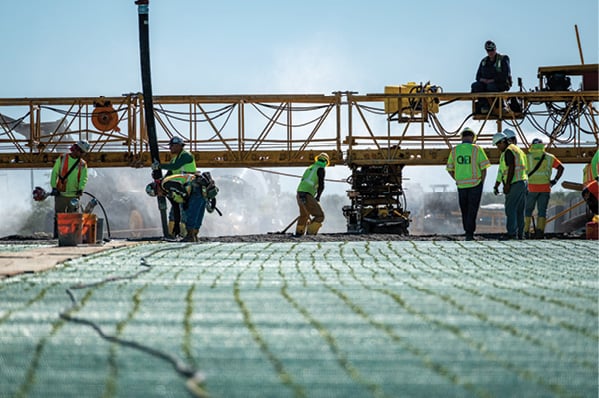

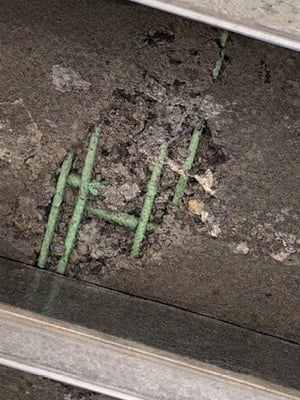

Photos show a contractor placing and vibrating concrete supported on transparent bridge deck forms (Top), and localized poor consolidation as seen from underside of deck through transparent form (Bottom).

Alignment with Transportation Asset Management Plan Goals

Federal law (23 U.S.C. 119) requires that all state DOTs develop and implement a risk-based TAMP for assets on the National Highway System. TAMPs must address bridge and pavement assets specifically as well as include lifecycle cost analysis, risk management and a financial plan with a minimum 10-year forecast. The TAMP isn’t merely a regulatory checkbox; it’s the strategic document that determines how bridge preservation dollars are allocated, which projects get funded and which bridges require expensive rehabilitation or replacement.

Most state TAMPs establish explicit bridge condition targets, typically expressed as a maximum percentage of NHS bridge deck area in poor condition, consistent with the FHWA’s 10-percent poor threshold and minimum targets for the percentage of deck area in good condition. Achieving and maintaining these targets requires a steady cadence of preservation actions: deck sealers, overlays, cathodic protection, crack sealing and minor concrete repairs applied at the right time, before deterioration has progressed to the point where only major rehabilitation or replacement is viable.

The Preservation Window

The economic logic of bridge preservation is well established. A deck that receives a protective overlay when it’s rated at condition 6 (satisfactory) typically requires far less investment than the same deck allowed to drop to condition 4 (poor) before intervention. But the preservation window—the period during which low-cost treatments still are effective—is compressed by uncertainty. If an owner doesn’t know whether the deck has subsurface voids, delaminations or areas of reduced concrete cover, they can’t confidently plan a surface-treatment program. An overlay applied across a deck with subsurface delaminations will itself delaminate prematurely, wasting both money and the treatment opportunity.

Targeted Repair After In-Service Detection

Under conventional steel SIP forms, detecting the precise location of a delamination or void requires sounding, ground-penetrating radar or other nondestructive evaluation (NDE) methods—all of which add cost and require specialized equipment. With transparent bridge deck forms, a trained inspector walking below the deck can visually map areas of concern, identify the lateral extent of a delamination by changes in the appearance of the concrete through the clear panel and document specific locations for repair crews.

Such targeted repair capability is directly aligned with TAMP principles. Rather than performing broad, undifferentiated repair programs that treat good concrete alongside deteriorated areas, bridge owners can direct limited preservation dollars precisely to the locations that need attention. The result is higher cost-efficiency per dollar spent and a longer interval before the deck crosses the threshold from preservation-eligible to rehabilitation-required.

Lifecycle Cost and Service-Life Projections

Baseline Assumptions

A rigorous lifecycle cost (LCC) analysis of any bridge component must account for initial cost, maintenance costs through time, the timing and cost of major interventions, and the discounted cost of replacement at end of service.

The incremental cost of transparent bridge deck forms relative to conventional corrugated steel SIP forms is real but modest when considered as a fraction of the total deck cost. The primary cost components affected by the choice of forming system are: 1) form material cost; 2) installation labor; 3) quality control and inspection activities at the time of the pour; 4) costs of defect remediation; and 5) the timing and cost of future preservation, rehabilitation and replacement activities.

Installation Efficiency and Time Savings

With conventional forms, even a well-managed deck pour may produce localized areas of poor consolidation that aren’t discovered until the forms are removed and inspected from below or until the first routine bridge inspection. Remediation of honeycombing typically involves saw-cutting, chipping, patching and curing: work that’s labor-intensive and disruptive to traffic. When these defects are caught during the pour, the concrete often can be consolidated by vibration or supplemental placement before it has set, eliminating the need for repair entirely.

Real-time visual quality control can reduce or eliminate post-pour remediation and associated repair costs. By avoiding delays, projects can reopen traffic sooner, reducing road user costs and minimizing the risks associated with construction overruns.

Extended Service Life Projections

Conversely, a deck whose initial quality has been visually verified and documented, and whose in-service condition can be monitored through transparent forms, can reasonably be expected to achieve its full design service life and potentially exceed it with appropriate preservation. If we assume a design service life of 50 years, and that transparent bridge deck forms reduce the incidence of construction-related premature deterioration sufficiently to add 8 to 12 years of service life, the replacement cycle shifts from 50 years to 58 to 62 years.

The financial impact of extending the replacement cycle by even a decade is substantial when viewed over a network of bridges. For a state DOT managing 5,000 bridge decks at an average replacement cost of $1.5 million per deck, extending the average replacement cycle from 50 to 60 years reduces the annual replacement expenditure required to maintain a steady-state network by approximately 17 percent—a savings of tens of millions of dollars per year, achieved by simply investing in better construction quality confirmation at the time of the initial pour.

Reduced Inspection and NDE Costs

Under conventional steel SIP forms, detecting the location and extent of delaminations or voids requires NDE methods such as infrared thermography, chain-drag sounding or ground-penetrating radar. Transparent bridge deck forms don’t eliminate the need for NDE, but allow inspectors to visually pre-screen the deck underside and prioritize NDE resources on areas that show visual evidence of concern. Conservative estimates suggest a 20- to 40-percent reduction in routine NDE expenditure per inspection cycle for decks built with transparent forms. When this savings is compounded across the full service life of a deck, it represents a meaningful contribution to the total LCC benefit of a transparent bridge deck form system.

Practical Guidance for Bridge Owners and Engineers

Specifying transparent deck forms on new construction and deck replacement projects is straightforward. The forms are designed to meet AASHTO LRFD Bridge Design Specification requirements for stay-in-place forms and don’t require project-specific design analysis beyond what would be performed for any SIP form installation. Engineers can reference transparent bridge deck forms by proprietary name, or they can develop performance-based specifications citing optical transmittance, structural capacity and durability requirements that a transparent bridge deck form is designed to meet.

During in-service inspections, inspectors use the visual access provided by transparent bridge deck form panels to augment their standard NBIS inspection protocol. Observations of concrete condition, efflorescence and any staining or moisture infiltration visible through the panels should be recorded as element-level condition data consistent with the SNBI format. When areas of concern are identified visually, targeted NDE and repair can be mobilized efficiently, preserving the deck at minimal cost and with maximum speed, consistent with the “right treatment at the right time” philosophy of a successful bridge preservation plan.

Conclusion

The intersection of tightening federal inspection standards, growing asset-management obligations and constrained transportation budgets creates a compelling environment for innovation in bridge deck construction quality. Transparent bridge deck forms offer bridge owners a uniquely effective tool for meeting all three challenges simultaneously. By enabling real-time visual confirmation of concrete consolidation quality during the initial pour, facilitating targeted in-service inspection through transparent panels and supporting the SNBI’s demand for reliable condition data, transparent bridge deck forms address the root cause of premature deck deterioration: the inability to see the underside of the deck until it’s too late.

For state DOTs, county highway departments and municipal bridge owners working to meet NBIS compliance requirements and TAMP condition targets, transparent bridge deck forms represent a strategic investment in the quality and longevity of the bridge deck, the single most maintenance-intensive and cost-critical element of the highway bridge.

References

FHWA, 2022, “National Bridge Inspection Standards Final Rule,” 87 Federal Register 27581, May 6, 2022, U.S. Department of Transportation.

FHWA, 2022, “Errata Number 2 Specifications for the National Bridge Inventory (SNBI),” FHWA, U.S. Department of Transportation; www.fhwa.dot.gov/bridge/snbi/.

FHWA, 2024, “Overview of the NBIS Final Rule and SNBI Implementation,” FHWA Office of Bridges and Structures.

FHWA, 2023, “Transportation Asset Management Plans—Resources,” FHWA Office of Asset Management, Pavements and Construction; www.fhwa.dot.gov/asset/plans.cfm.

National Cooperative Highway Research Program, 2014, “NCHRP Report 758: Primer on Bridge Deck Deterioration and Preservation Strategies,” Transportation Research Board, Washington, D.C.

American Association of State Highway and Transportation Officials (AASHTO), 2020, “AASHTO LRFD Bridge Design Specifications, 9th Edition,” AASHTO, Washington, D.C.

Contech Engineered Solutions, 2024, “ClearCast® Transparent Bridge Deck Forms Product Information,” www.conteches.com/bridges-structures/bridge-deck/clearcast/.

MAP-21—Moving Ahead for Progress in the 21st Century Act, 2012, 23 U.S.C. § 119—National Highway Performance Program and Transportation Asset Management.

Illinois Department of Transportation, 2024, “New SNBI Requirements—Bulletin to Bridge Inspectors,” August 2024, Bureau of Bridges and Structures.

Oregon Department of Transportation, 2022, “Oregon Transportation Asset Management Plan,” ODOT, Salem, Ore.
