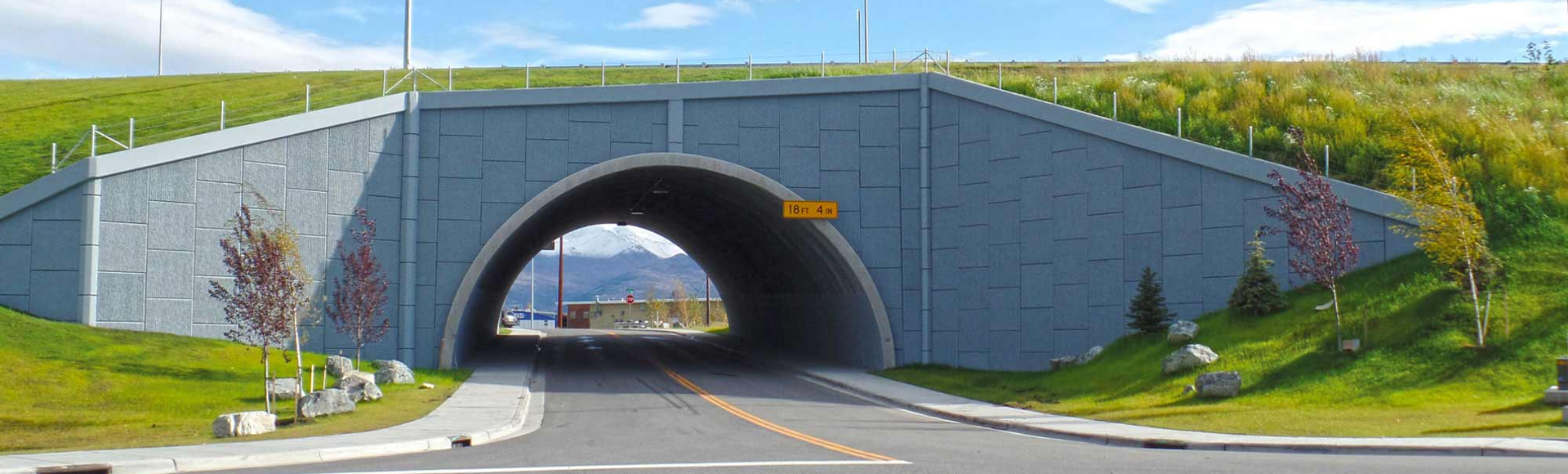

A buried bridge made from the Bridgecor modular bridge system.

BridgeCor®

Redefining standard bridge design for increased durability. The 15” x 5.5” advanced profile allows designers to convert traditional bridges into more economical buried bridges by clear spanning up to 65’. This corrugation is already widely accepted by AASHTO and the international engineering community.

Find your local Contact

Our local contacts are experts who are ready to help

For the past 80 years, Contech MULTI-PLATE® has been the buried bridge standard. BridgeCor® enhances the established performance of 6" x 2" MULTI-PLATE by offering 9 times the stiffness and 3 times the strength. Structural plate has proven its bolted, segmental construction to be economical and easily assembled by local forces. Contech BridgeCor is manufactured with the industry’s best equipment allowing for the longest laying length sheets in the industry.



Benefits of BridgeCor Systems:

  • Buried Bridge Structure - Reduces maintenance costs and lowers life cycle costs as there are no bridge deck or joints at the deck/roadway interface
  • Modular Bridge System - Rapid installation results in reduced overall project costs, delays and detours
  • Designed “Site Specific” - Meets your site needs in full compliance with AASHTO, ASTM & AREMA design standards for highway and railway use
  • Easy Site Adaptability - Flexible layout options to fit within the right-of-way – curve the structure with a stream or adjust for vertical and horizontal clearance requirements
  • Spans of up to 65'
  • Onsite assembly with fewer bolts

The Contech Design Center

The Contech Design Center provides engineers unparalleled flexibility in the layout and configuration of a Contech Bridge System. Our latest release includes options previously unavailable in a free, web-based design tool:

  • A 2D/3D design environment with high resolution graphics including BIM model output.
  • The ability to import a PDF site plan and design a system to scale over the plan.
  • Provide instant access to customized, project-specific drawings.
  • Design multiple systems per project and save for future use.
  • Digitally collaborate using the new “Project Collaboration” feature. Share your project easily with anyone through the new project management page.

Contech Design Center

Technical information for this product is centrally located in the technical guides section.

View Technical Information

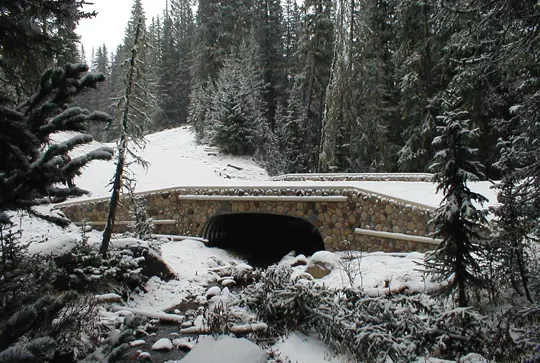

A culvert over a stream made from MULTI-PLATE.
Structural Plate for Stream and Wildlife Crossings

Our Structural Plate products can be used for fish passages and wildlife crossings. The ability of Structural Plate products to span the delineated area reduces the need for permitting and allows for quick installation.

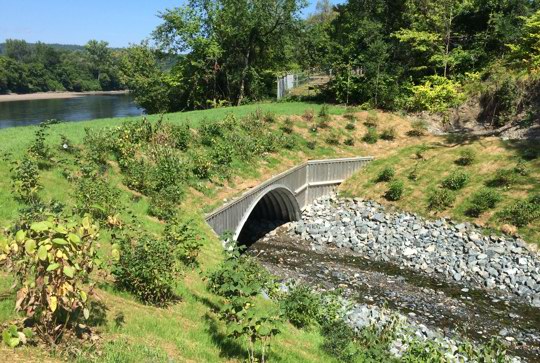

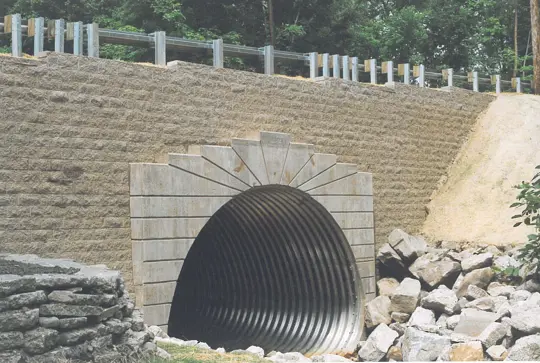

A culvert made from MULTI-PLATE.
Plate Structures for Culvert, Canals and Enclosures

Our structural plate products, BridgeCor, MULTI-PLATE, Aluminum Structural Plate and SUPER-SPAN, offer a flexible and strong solution for culverts and enclosing canals and streams.

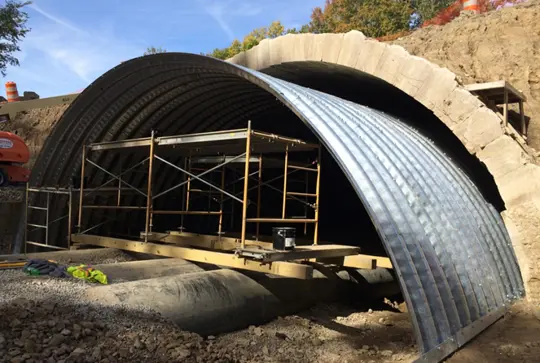

A tunnel being relined with structural plate.
Structural Plate for Rehabilitating Bridges

Bridges can be relined by erecting our plate structures inside existing structures. Or, the new plate structure can be erected outside and threaded into existing openings. Our Plate Structures, including Two-Flange Liner Plate, are delivered to the job site unassembled. The plates and ribs are easily bolted together to form various shapes: round, vertical and horizontal ellipse, pipe-arch, underpass and arch.

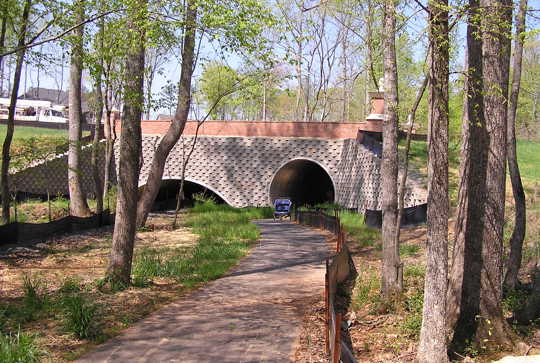

Structural plate being used for pedestrian and recreation traffic under a roadway.
Structural Plate for Pedestrian and Recreation Traffic Loads

The many shapes and sizes of structural plate structures, BridgeCor, MULTI-PLATE, Aluminum Structural Plate and SUPER-SPAN, as well as their low cost and ease of installation, make them a mainstay for pedestrian and golf course bridges, overpasses, underpasses, and tunnels.

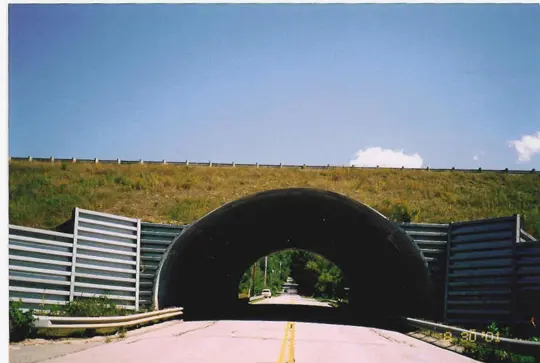

A buried bridge made from structural plate.
Structural Plate for Grade Separation

Our structural plate systems, including BridgeCor, MULTI-PLATE, Aluminum Structural Plate and SUPER-SPAN, are used frequently throughout the nation's infrastructure because of its light weight, durability and ease of installation. Structures can be pre-assembled on-site and lifted into place or assembled in place without the need for heavy or specialized equipment.

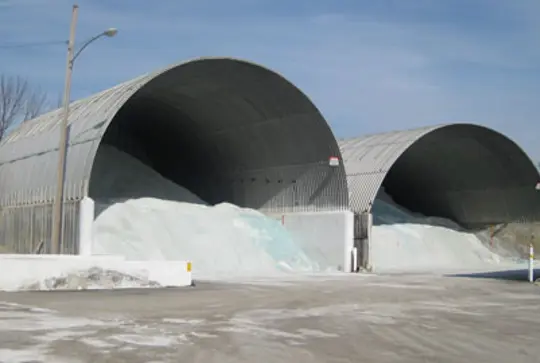

Structural plate bin wall storage bunkers
Structural Plate for Storage Structures and Ammo Bunkers

Consisting of field bolted galvanized steel plates; MULTI-PLATE has a long history of strength, durability and economy. It is arranged and curved to make a variety of shapes, including round, pipe-arch, arch, and ellipse (horizontal and vertical). BridgeCor's advanced profile and variety of shapes is an ideal solution as well.

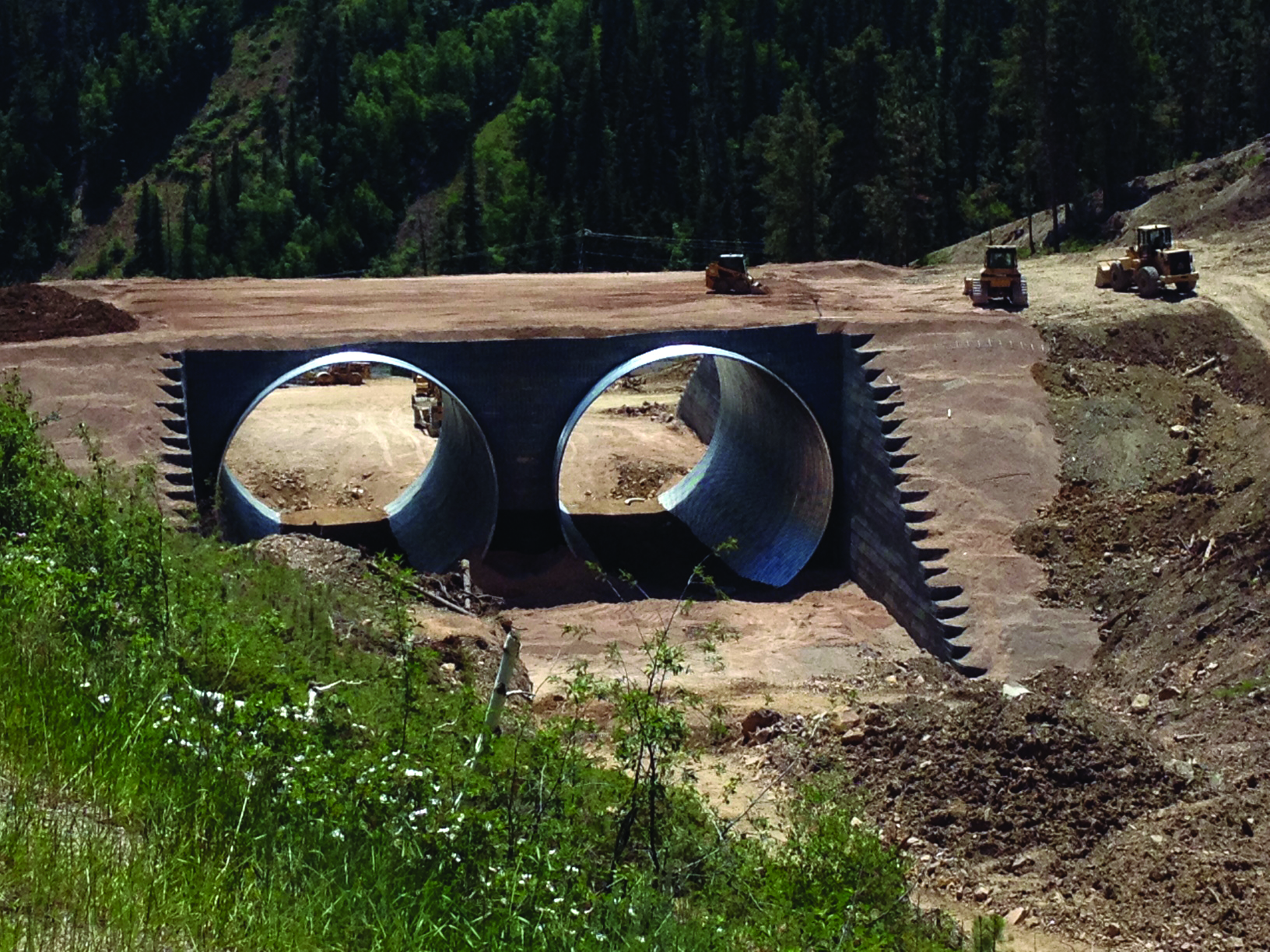

A culvert made from structural plate.
Plate Bridges for Bridge Replacement

Plate structures allow highway agencies and municipalities to dramatically reduce construction time and traffic disruptions when replacing our nation’s aging infrastructure. Plate bridges are ideally suited for emergency bridge replacements.

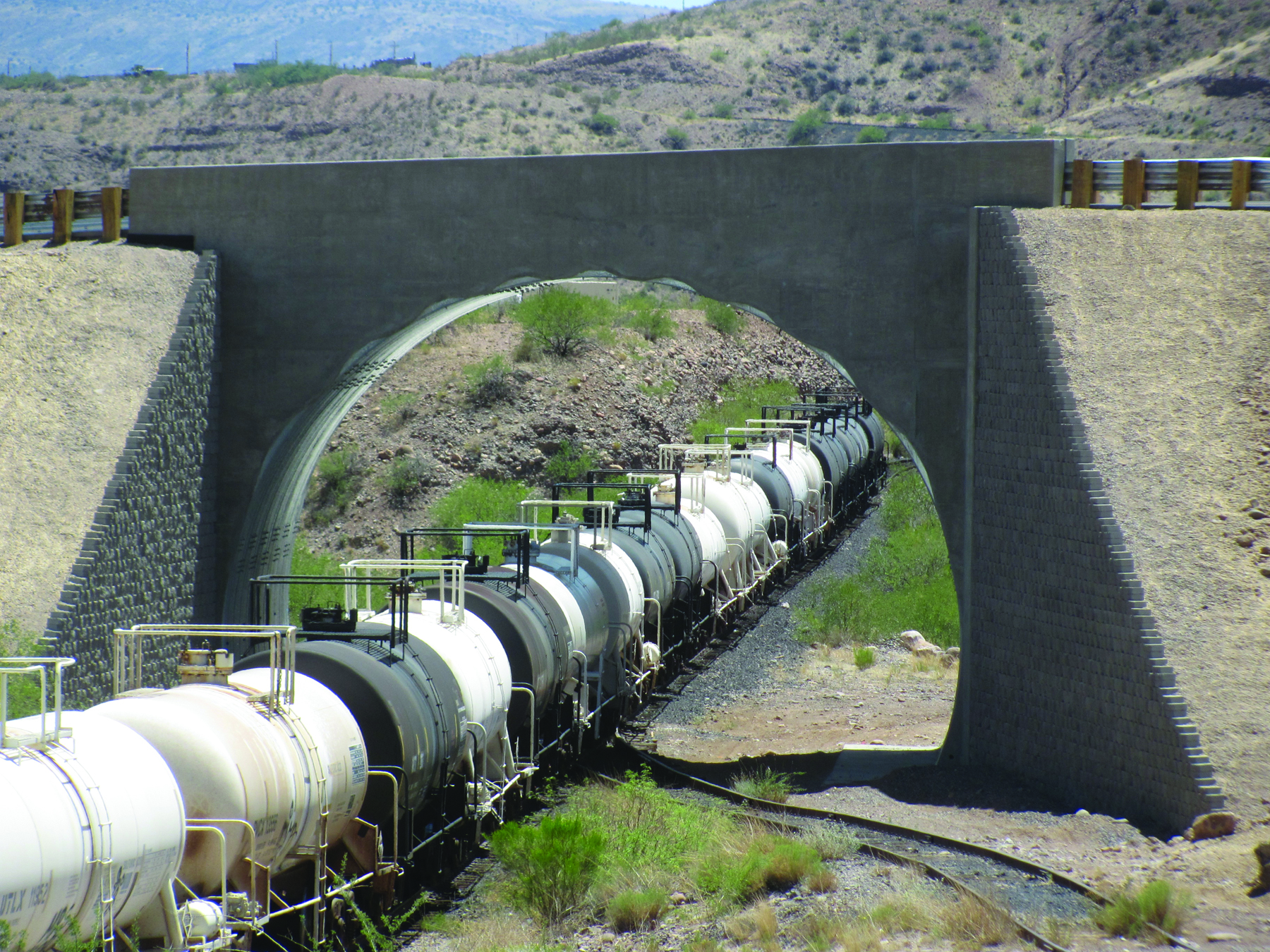

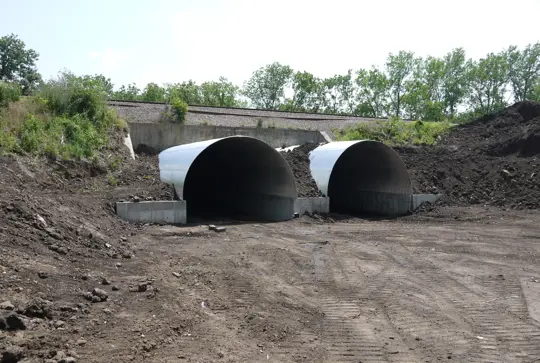

Relining a culvert under a rail line with structural plate.

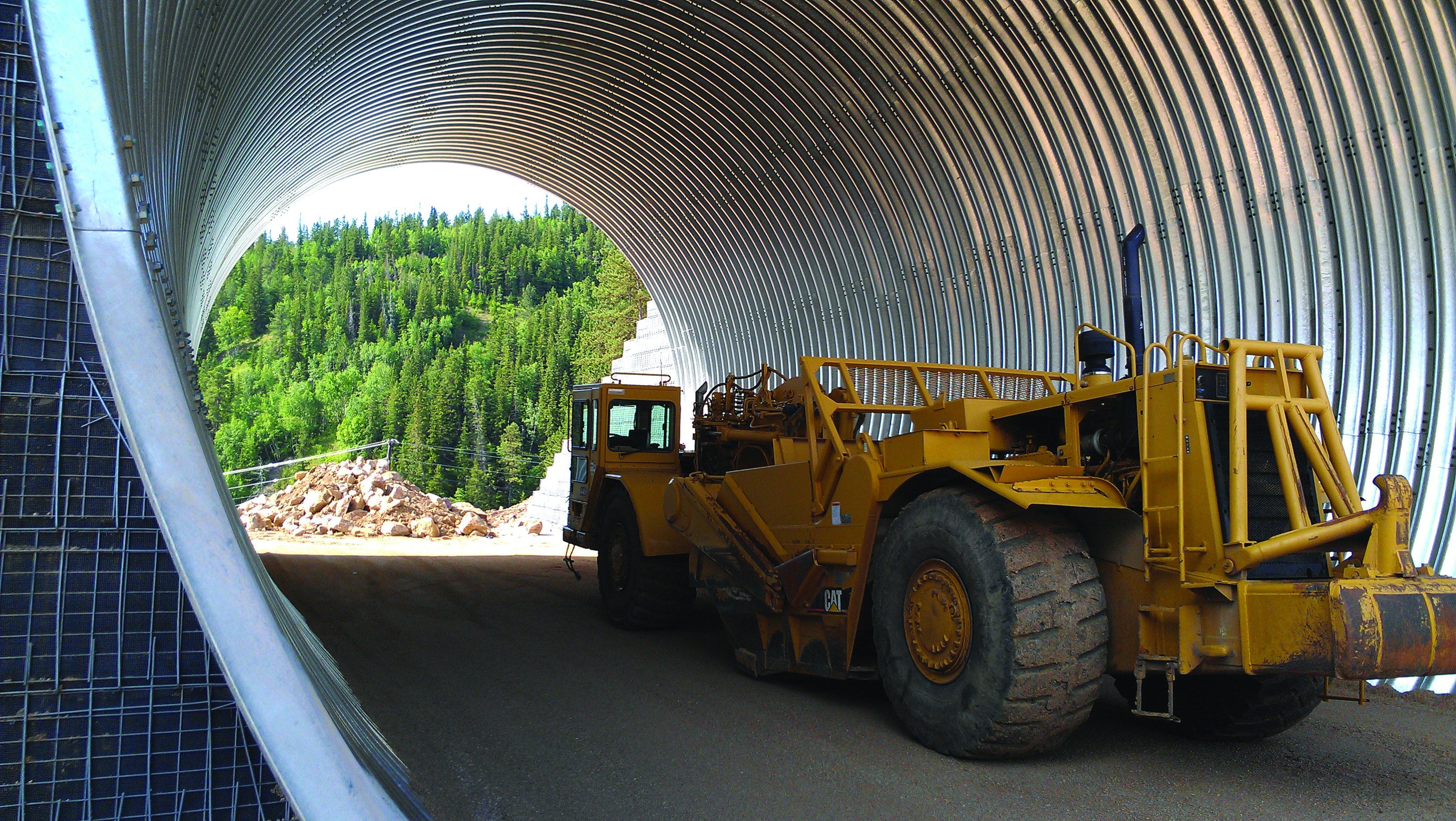

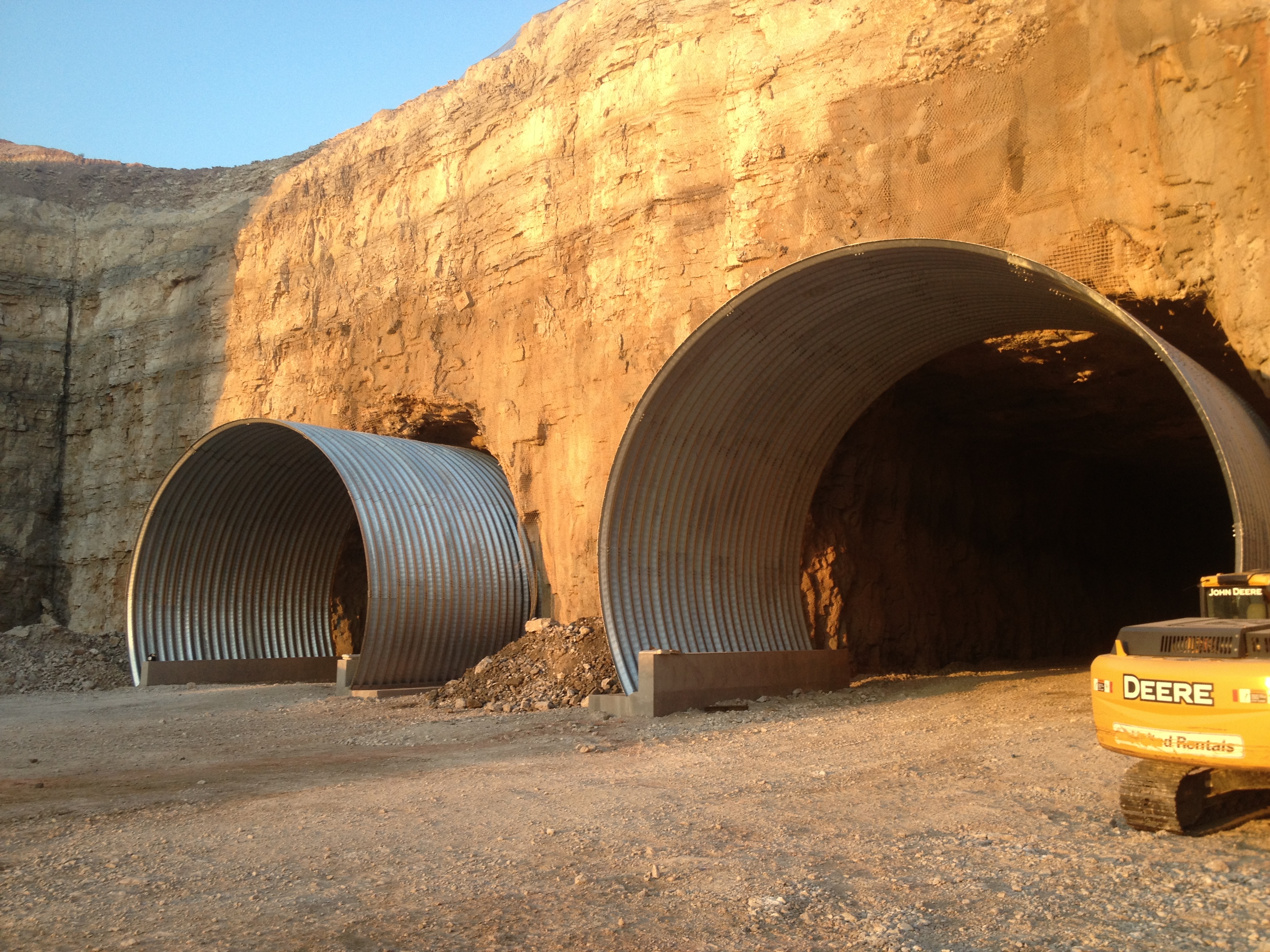

Structural Plate for Mining Portals, Rail Tunnels and Conveyor Enclosures

Our durable Structural Plate can meet heavy duty demands for industrial or mining applications. MULTI-PLATE round arch shapes are the most widely used structures for aggregate tunnels. Special features such as hopper openings, conveyor supports, bulkheads, escape laterals and elbows to accommodate grade changes and alignment are readily integrated. Plate structures can also be utilized to extend and improve mine entrances, providing protection from falling rocks and debris.
