VortClarex® Oil Water Separator

The VortClarex system is an oil/water separator that utilizes coalescing media to efficiently remove freely dispersed oil and other liquid pollutants from urban runoff and industrial discharges. The VortClarex is specifically designed for those sites where the removal of oil and grease is the greatest concern and where oil and grease effluent targets are specified.

Superior Oil / Water Separation

The VortClarex is specifically designed for those sites where the removal of oil and grease is the greatest concern and where oil and grease effluent targets are specified.

The VortClarex builds on the conventional oil-water separator design by using a highly efficient coalescing media to maximize the surface area and optimize the treatment volume available for oil/ water separation.

In most cases, the system will be installed belowground to treat stormwater runoff; however, treating oily water from floor drains and vehicle wash-down pads will also be possible with the VortClarex. In addition to below-ground applications, the VortClarex can also be used to treat process and pumped flow applications in an aboveground configuration.

What you get with the VortClarex Oil/Water Separator:

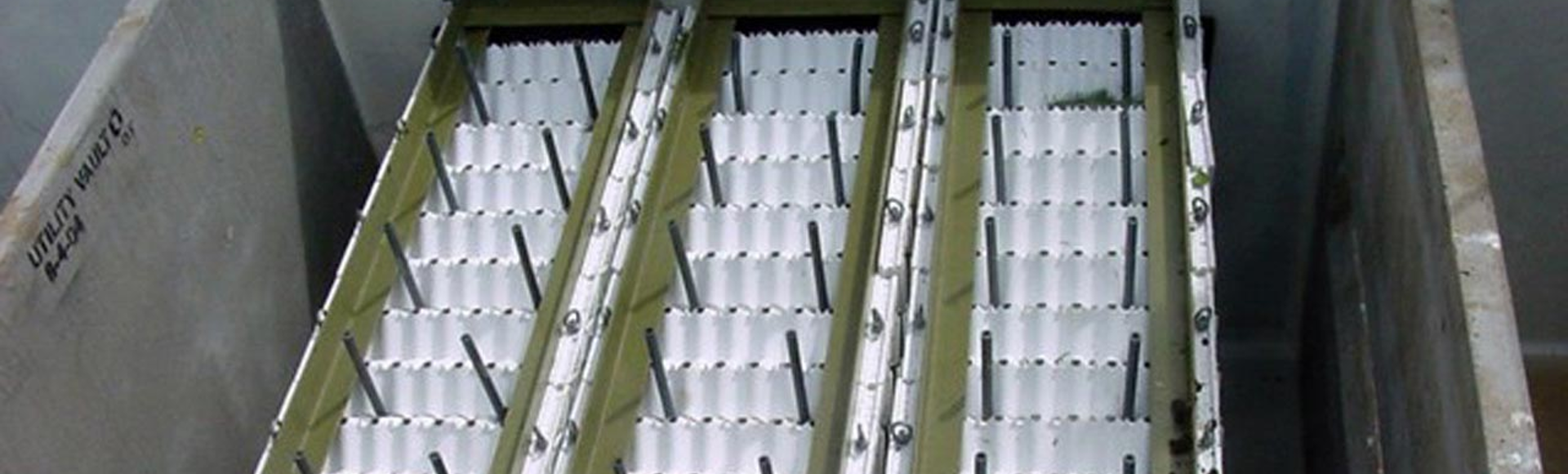

Polypropylene coalescing media
- Removes up to 99% of free oil droplets down to 60 microns (standard design)
- Releases TPH effluent with a quality of 10 mg/L or less.
Non-turbulent flow through the system
- Maximizes efficiency by increasing rise rate and size of droplets
Precast concrete structure housing
- Ensures durability
- Meets HS-20 loading requirements
- Provides for a shallow installation
Belowground system
- Maximizes land use
Meets Spill Prevention, Control and Counter Measure (SPCC) requirements
- Easy approval
Standard and custom models available
- Quick turnaround on sizing and engineering estimates, quotations and manufacturing

Technical information for this product is located in the technical guide’s section.

View Technical Information

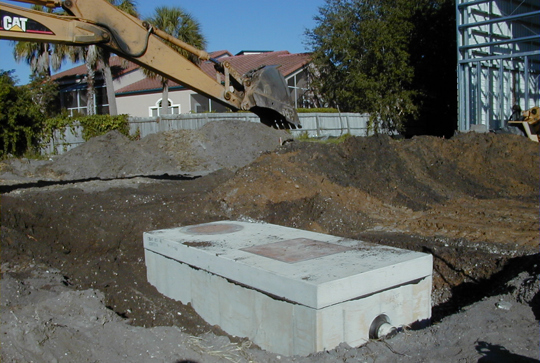

Installation of a Vortclarex oil-water separator.

VortClarex for Oil / Water Separation

VortClarex employs innovative coalescing media to remove free oil droplets down to 60 microns in diameter from contaminated stormwater flows. The system is best suited for sites where specific effluent targets are specified, and where oil is not chemically or physically emulsified.
