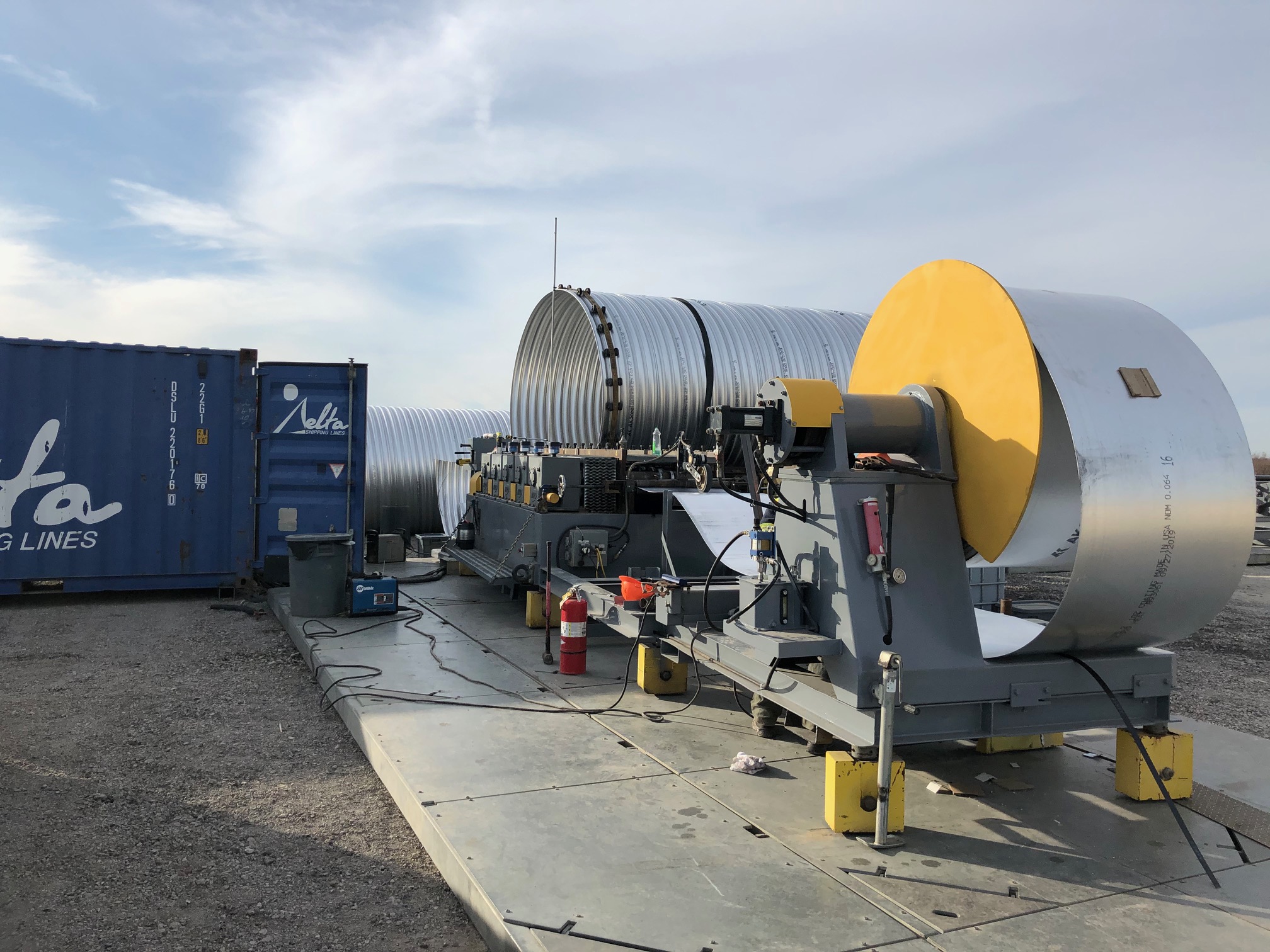

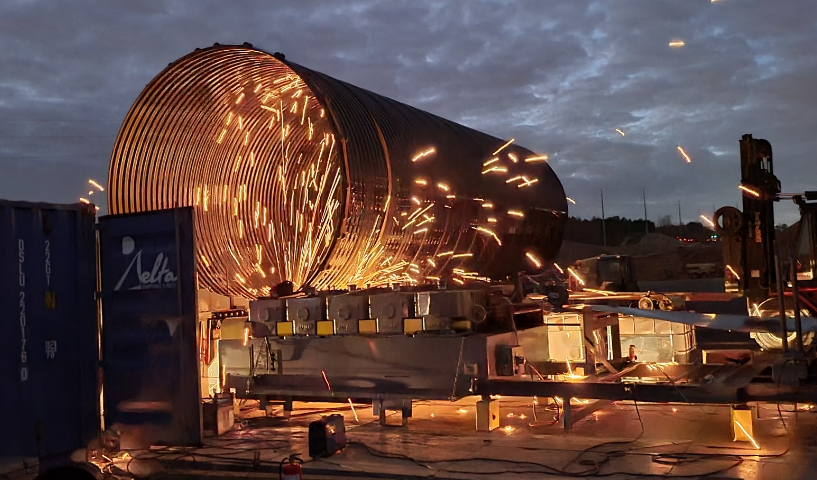

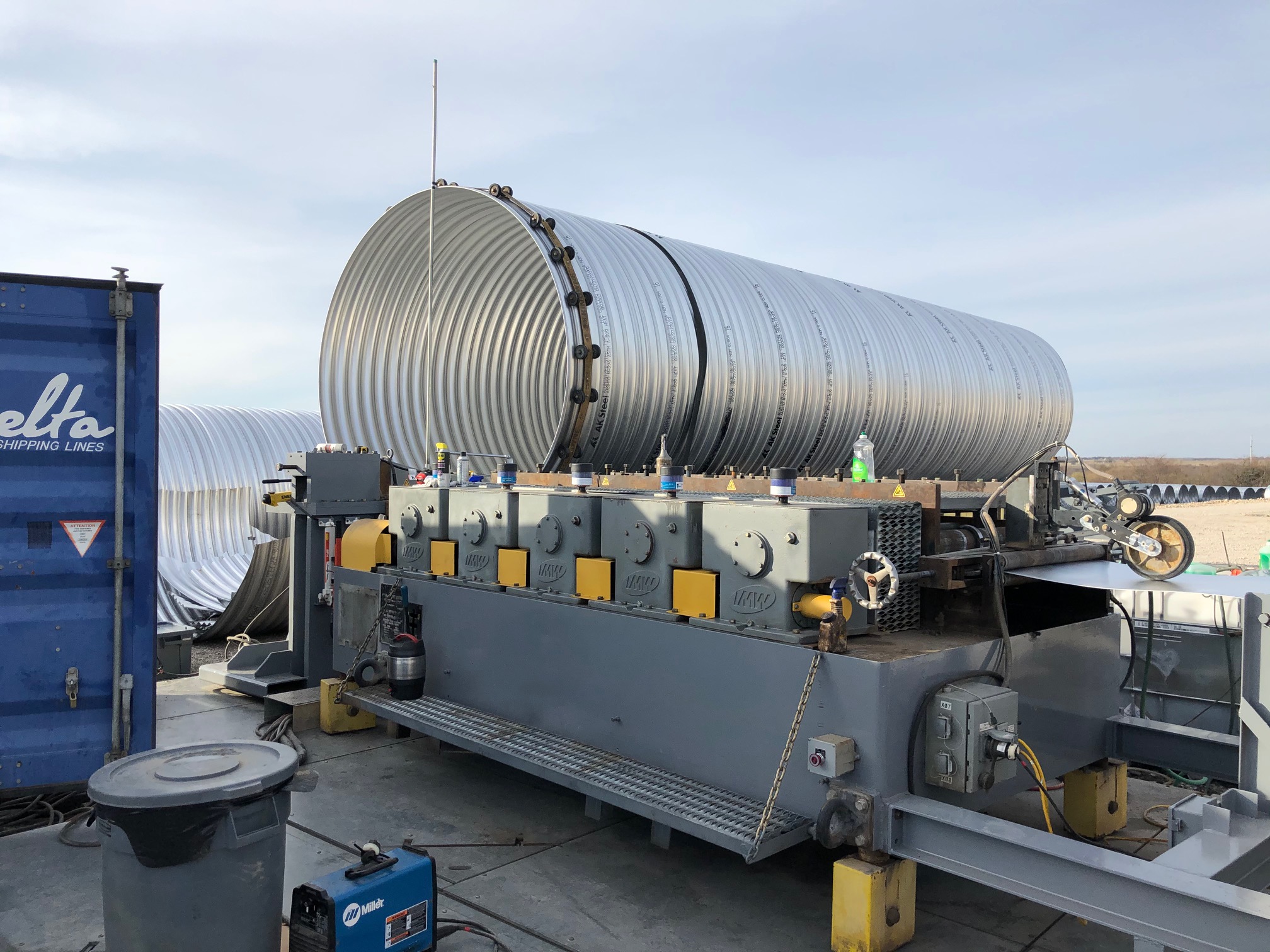

Contech Engineered Solutions’ MOBILE PIPE® mill can be delivered to remote site locations on trucks and assembled on-site for fast and cost effective on-site steel pipe manufacturing. The MOBILE PIPE mill is designed to be a self-supporting factory that can be quickly deployed and put into production. Once on-site, pipe manufacturing progresses quickly enough to allow pipe installation within four hours.

MOBILE PIPE® is a mobile production vehicle that provides fast and cost effective on-site steel pipe manufacturing. MOBILE PIPE is designed to be a self-supporting factory that can be quickly deployed and put into production. Re-corrugated ends are also available to meet specific project needs. Once on site, pipe manufacturing progresses quickly enough to allow pipe installation within four hours.

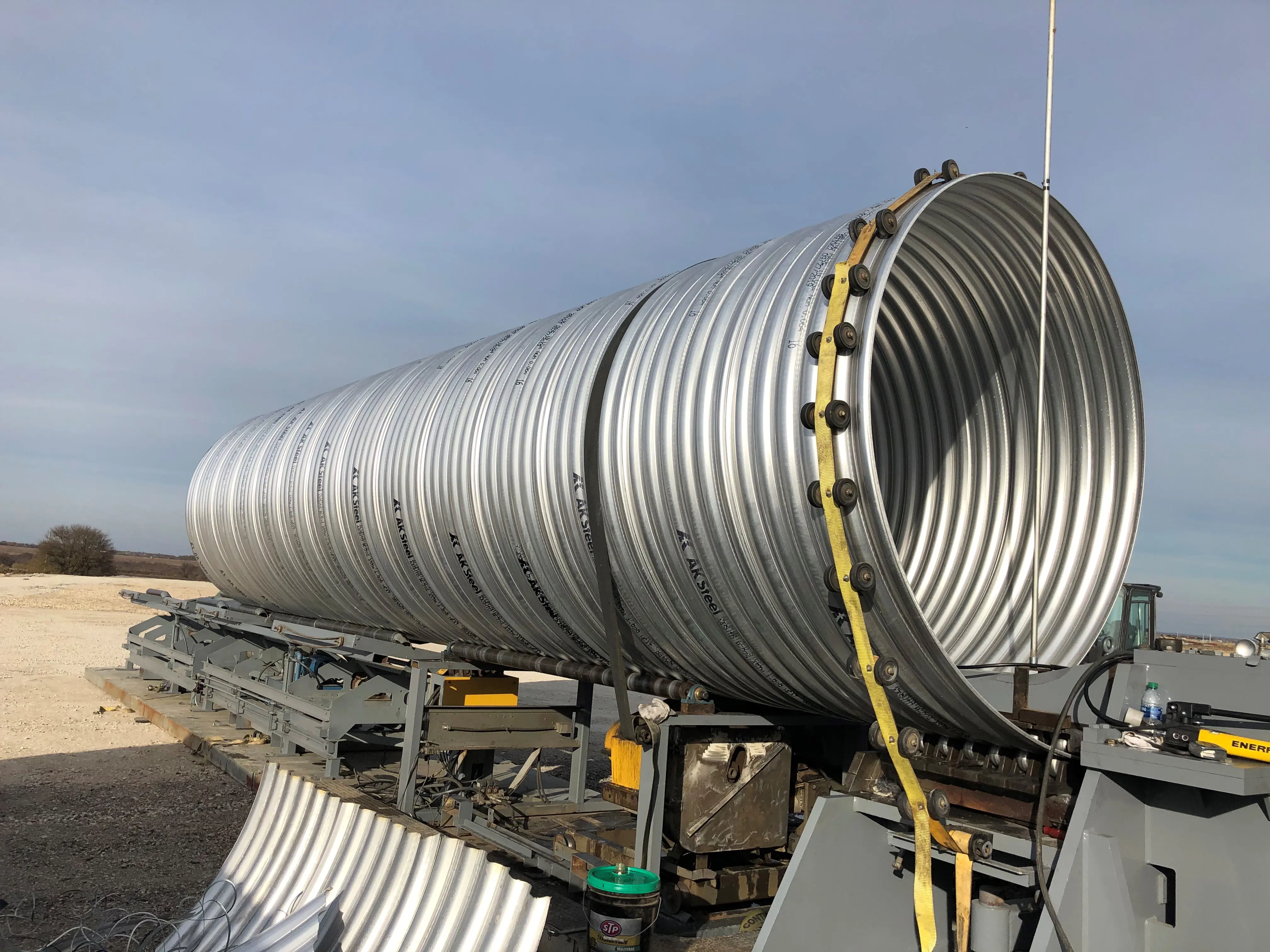

MOBILE PIPE can produce corrugated metal pipe in a variety of sizes. Diameters from 2'-16' and lengths up to 35' can be accommodated. This pipe meets the same levels of quality construction as does all Contech manufactured pipe, with high coil feedrate speeds and the same lock-seam edge process used in conventional pipe manufacturing.

MOBILE PIPE is ideal for:

  • Remote jobs
  • Projects requiring large, continuous pipe production (large detention systems, windmill foundation forms, vertical shafts, caissons)
  • Support for natural disasters where immediate deployment and rebuilding is required
  • Sites with limited storage space or restricted traffic patterns

MOBILE PIPE® Manufacturing Capabilities

FEATURE Capability

Steel Corrugations

HEL-COR® 2 ²/3 x ½ ( Gages 10, 12, 14 & 16)
HEL-COR® 3 x 1 (12 GA, 14 GA & 16 GA)
HEL-COR® 5 x 1 (12 GA, 14 GA & 16 GA)
ULTRA FLO® Spiral Rib Pipe
Smooth Cor™ (3 x 1 outer shell only)

Coatings

Galvanized
Aluminized Type 2 (ALT2)
Polymer-Coated
Black Steel (5 x 1 only)

Length

35-foot maximum

Diameter

192-inch maximum

End Roll

2 ²/3 x ½ Annular Corrugation End Roll (available for all pipe corrugations)

MOBILE PIPE Foundation Pad

Available Upon Request

Technical information for this product is centrally located in the technical guides section.

View Technical Information

The Contech Advantage


Agency/Regulatory Guidance

Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.



Solution Development

Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.

Technical Expertise

Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.

Cost Estimates

We can quickly provide engineer’s cost
estimates to assist with your solution
selection process.

Site Specific Drawings

Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.

On-site Assistance

Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
