Bridge Plank

Bridge Plank

Cost-Effective Installation for Deck Rehab/ New Construction. Contech Bridge Plank is used for re-decking bridges and for new construction, either to replace deteriorated wood or concrete decks on otherwise structurally sound bridges, or as a high-strength continuous bridge deck surface for new bridges.

Once welded or bolted in place, Contech Bridge Plank restores strength to old structures and stiffens bridges laterally, providing a solid base for new asphalt paving and eliminating rattles.

With Contech Steel Bridge Plank, there is nothing to crack, warp or rot. Repeated, expensive repair work on the bridge floor comes to a halt, and the danger of fire is minimized. Our Bridge Plank also eliminates reduced load limits caused by inadequate flooring.

Contech Steel Bridge Plank comes in different corrugation patterns to fit various deck loading requirements. Installation requires no special crews or equipment. The structural-quality steel used to manufacture our Bridge Plank conforms to the requirements of ASTM A 1011, ASTM A 929, ASTM A 653 or ASTM A 1018, depending on the steel thickness. Zinc coatings, when ordered, are in accordance with ASTM A 123 (for hot-dip galvanized) or ASTM A 929 (for Pre-galvanized or Aluminized Type 2).


Benefits of Bridge Plank:

  • Rigid panel construction - Restores strength to old structures. Positive welded connections help stiffen the entire structure and the deck becomes an integral part of the bridge
  • Galvanized steel planks - Long service life with minimal maintenance
  • High strength-to-weight ratio - Total weight is only slightly higher than most timber floors and in some cases (especially replacement of reinforced concrete decks) the load is actually reduced
  • Convenient lengths and standard sizes with no special equipment or training - Fast, low-cost installation

Technical information for this product is centrally located in the technical guides section.

View Technical Information

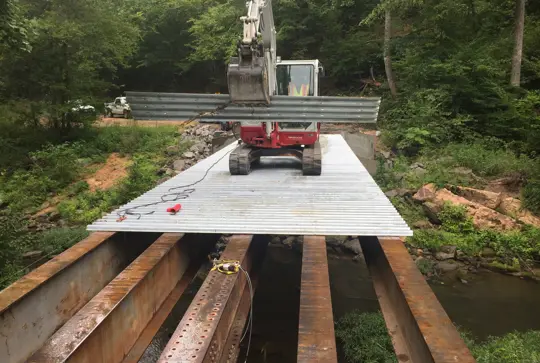

Bridge Plank for Deck Rehabilitation

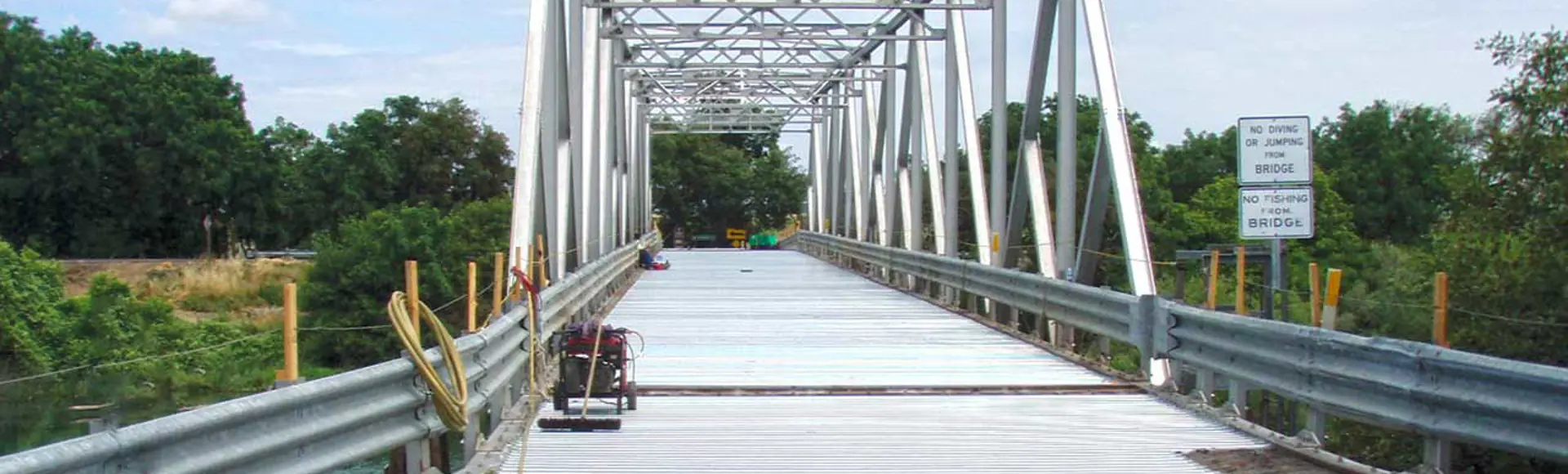

The easy and economical solution is to replace noisy, worn-out wood floors or deteriorated concrete decks with Contech Bridge Plank. Corrugated steel Contech Bridge Plank has a proven track record from coast to coast on many types of bridges, including skewed structures.

The Contech Advantage


Agency/Regulatory Guidance

Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.



Solution Development

Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.

Technical Expertise

Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.

Cost Estimates

We can quickly provide engineer’s cost
estimates to assist with your solution
selection process.

Site Specific Drawings

Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.

On-site Assistance

Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
