Beyond Sizing: Designing Stormwater BMPs for Inspection, Access, and Maintenance

Stormwater BMP design usually starts with two basic questions: can the BMP treat the required flow or volume, and can it physically fit on the site? Those questions are important, but they are not enough as a BMP is not fully designed until someone can inspect it, clean it, and understand who is responsible for maintaining it. Maintenance should not be treated as a post-construction problem. It is a design decision.

Start with placement

Maintenance access begins with BMP placement. A location may work hydraulically but still create problems if it is placed too close to buildings, walls, slopes, utilities, landscaping, parking stalls, or ADA paths. These conflicts are much easier to solve early in design, while the site plan is still flexible. Once the BMP is surrounded by curb, landscape, walls, utilities, or buildings, creating access becomes much harder and more expensive.

Design for the person maintaining the BMP

A useful design exercise is to think about the person who will maintain the system.

• Can they find every access point?
• Can they safely open the covers?
• Is there a flat, stable working area?

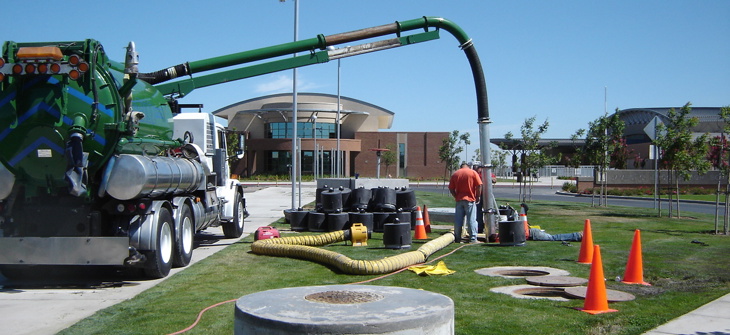

• Can a vacuum truck reach the sump, chamber, or pretreatment area?
• Are there vertical or horizontal clearance issues with lids, hoses, booms, or tools?

For some BMPs, lift-assist covers may also be worth considering if heavy lids would make routine inspection difficult. The goal is not to overcomplicate the design. The goal is clear access, safe lid handling, and realistic cleanout logistics.

Coordinate the full plan set

A BMP can look acceptable on the civil plan and still fail in the field if another discipline blocks access. Landscape plans may add trees, shrubs, irrigation, or decorative hardscape. Utility plans may create conflicts around structures or access lids. Grading plans may introduce slopes or unstable working areas. The WQMP or O&M plan may describe maintenance procedures that do not match the final layout. Civil, landscape, utility, grading, drainage, WQMP, O&M, and ownership documents should all tell the same story.

Think about the full BMP train

Every BMP has a maintenance reality. For pretreatment, where does sediment, trash, and floatable material collect, and how is it removed? For biofiltration, can the media, mulch, plants, and pretreatment areas be inspected and serviced? For detention and infiltration, can chambers, risers, headers, outlet controls, and accumulated sediment be inspected? For trash capture, can the captured material be removed and documented without creating an excessive field burden?

The BMP train is only as maintainable as its hardest-to-access component.

Do not forget turnover

Maintenance access also depends on a clean handoff. Owners and property managers need to know what BMPs they have, who is responsible for maintaining them, what the inspection frequency is, and when the first maintenance activity should occur. Permanent BMPs should also be protected during construction. They should not become construction sediment basins by default.

The main takeaway

Good stormwater design does not stop at sizing the BMP. Plans should show where the BMP is located, how it will be accessed, how it will be cleaned, and how the maintenance responsibility will be handed off.
The end goal is a BMP that can be approved, built, inspected, maintained, and explained to the owner.
