Engineered Pipe Solutions for the Next Big Storm: Innovations in Storm Sewer Systems

Introduction

As cities grow and climate patterns shift toward more frequent and intense rainfall events, the design of resilient and sustainable storm sewer systems has become a critical priority. These networks must manage increasing runoff volumes, protect downstream environments and safeguard vital infrastructure—all while balancing cost, constructability and long-term performance.

Designing an effective storm sewer system goes far beyond selecting a pipe material. It requires a holistic understanding of hydraulics, structural performance, soil-structure interaction, joint integrity, installation conditions and service-life expectations. In today’s engineering landscape, success depends on how well each of these factors integrates to produce a reliable, long-lasting and maintainable drainage solution.

This article explores the principles behind advanced storm sewer design, examining how modern materials and engineering methods can help designers avoid common pitfalls, optimize hydraulic efficiency and deliver systems capable of handling the next big storm.

Industry Context: The Rising Challenge of Stormwater Management

The stormwater industry is undergoing significant transformation. Urbanization continues to increase impervious surfaces (e.g., roads, parking lots and rooftops) that accelerate runoff and reduce infiltration. At the same time, changing weather patterns are producing more intense, localized storm events that can easily overwhelm outdated infrastructure.

Municipalities, transportation departments and private developers are adapting by updating design standards to accommodate higher peak flow rates, longer service life and more sustainable practices. For engineers, this evolution introduces several concurrent challenges:

• Designing systems capable of managing higher peak discharges.

• Ensuring structural durability against live and dead loads.

• Preventing corrosion and chemical degradation in harsh environments.

• Balancing hydraulic performance, cost efficiency and constructability.

• Meeting accelerated project schedules and regulatory expectations.

The most effective approach to these challenges is not purely material driven but engineering driven, combining advanced product performance with comprehensive design and installation support to achieve long-term functionality.

Collaboration and Technical Support

Engineering successful storm sewer systems requires collaboration from conceptual design through construction and maintenance. Each project presents unique conditions (e.g., variable soils, fluctuating groundwater levels, site geometry constraints, differing regulatory requirements, etc.) that must be integrated into the design process.

Key elements of a collaborative design and support process include the following:

• Hydraulic modeling and system layout assistance: Evaluating flow regimes, pipe sizing and slope adjustments to achieve optimal hydraulic performance.

• Structural evaluation: Assessing load conditions, bedding support and backfill requirements based on expected traffic or cover depths.

• Material selection guidance: Matching pipe materials and coatings with environmental conditions and budgetary considerations.

• Onsite technical oversight: Ensuring that the installation follows design intent, from trench preparation to joint assembly.

• Lifecycle cost assessment: Quantifying long-term economic benefits by considering installation, maintenance and service-life performance.

Such collaboration allows engineers to design systems that are not only hydraulically efficient but also structurally sound, constructible and sustainable.

Understanding Storm Sewer Design Fundamentals

1. Structural Design Considerations

Storm sewer pipes must resist static and dynamic loads, including soil weight, traffic loads and live loads from construction equipment. The ability of a pipe to carry these loads safely depends on the interaction among the pipe wall, surrounding soil and backfill.

Key considerations include the following:

• Cover depth: Minimum and maximum cover limits ensure the pipe maintains ring compression without excessive deflection or buckling.

• Backfill selection and compaction: Properly graded, angular materials provide uniform load distribution and prevent settlement.

• Trench width and bedding quality: Adequate bedding minimizes point loads and maintains grade alignment.

• Buckling resistance: Deep-buried or large-diameter pipe systems must be evaluated for potential deflection or buckling under compressive soil loads.

The design process also should include a structural check comparing calculated thrust, bending moments and wall stresses to allowable material limits. Both rigid and flexible systems require analysis under expected loads and installation conditions, per standards such as AASHTO LRFD Section 12 or ASTM D2412.

For example, steel reinforced polyethylene (SRPE) is designed to meet these structural demands by combining the strength of steel with the durability of polyethylene. The result is a pipe capable of handling higher loads and deeper installations without sacrificing hydraulic performance and durability.

2. Hydraulic Performance and System Sizing

Hydraulic efficiency determines the ability of a storm sewer to convey flow without surcharging. Smooth interior surfaces minimize frictional resistance, reducing the Manning’s “n” value and allowing smaller diameters or flatter slopes to achieve the required flow rates.

Critical design factors include the following:

• Energy losses at bends, maintenance holes and junctions.

• Flow regime transitions (from full to partial flow).

• Hydraulic grade line (HGL) calculations to avoid surcharging and surface flooding.

Designers must account for both conveyance capacity and velocity control. Excessive velocity can cause downstream scour, while low velocity may lead to sediment deposition. Striking a balance is essential to maintain long-term performance and reduce maintenance. For example, a spiral rib profile offers a hydraulically efficient corrugated metal pipe (CMP) system with a smooth interior that delivers higher flow rates compared to traditional CMP. This can result in smaller diameters or reduced excavation requirements—both translating to significant cost and time savings.

3. Joint Integrity and Connection Performance

Joint design is one of the most overlooked aspects of storm sewer performance. Poorly designed or installed joints can lead to infiltration, exfiltration and soil migration, undermining structural stability and causing maintenance problems.

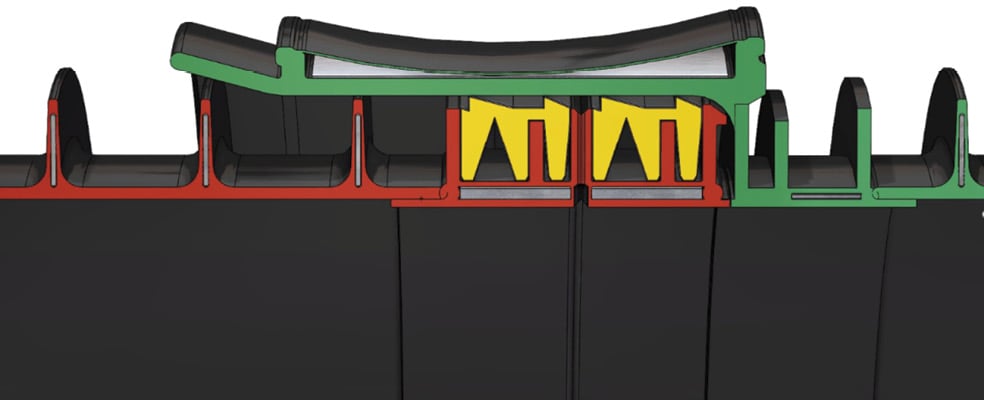

The DuroMaxx® SRPE QuikJoint® system exemplifies innovation in this area. It allows easy in-ground pressure testing without specialized tools, providing immediate confirmation of installation quality. Its compression-sealing mechanism ensures long-term watertight performance—critical for systems where joint failure could lead to costly maintenance or environmental contamination.

Key attributes of effective joint systems include the following:

• Watertight performance: Joints should meet or exceed industry standards.

• Ease of assembly: Field-friendly connections reduce installation time and minimize the potential for improper alignment.

• Testability: Systems that allow in-field pressure or vacuum testing ensure quality assurance before backfilling.

Watertight performance is particularly critical in environmentally sensitive areas, where infiltration may overload systems or exfiltration may cause contamination of surrounding soils and groundwater.

4. Durability and Service Life

Durability directly impacts lifecycle cost and sustainability. Material selection must consider the soil and water chemistry, abrasion potential and exposure environment.

Typical durability considerations include the following:

• CMP systems: Coatings such as aluminized type 2, polymeric or aluminum protect against corrosion in aggressive soils and water.

• Thermoplastic systems: Polyethylene and PVC resist corrosion and chemical attack, making them suitable for industrial or urban runoff applications.

• Concrete systems: RCP may be selected for extremely high loads or where fire resistance is required, though chemical durability must be verified through pH testing.

Each material class offers distinct advantages, and design standards generally target a service life of 75 years or more when properly specified and installed. For example, metal pipes should be specified as aluminized type 2, polymeric coated for aggressive soils or aluminum (in brackish areas). PVC and SRPE systems resist corrosion and chemical degradation, which is ideal for industrial or urban stormwater applications.

Common Design Pitfalls in Storm Sewer Planning

Even experienced engineers occasionally encounter issues during system design. Awareness of common pitfalls helps avoid costly rework and performance failures.

1. Underestimating Future Hydrology

Designs based on outdated rainfall or runoff data may fail under modern conditions. Engineers should use updated resources such as NOAA Atlas 14 or local IDF curves that reflect current rainfall intensities.

2. Ignoring Joint Performance

Many failures originate at joints, where infiltration, exfiltration or misalignment occurs. A hydraulically efficient system still fails if connections are not structurally or hydraulically sound.

3. Improper Backfill and Compaction

Overly fine, poorly graded or inadequately compacted materials can compromise pipe support, leading to deflection, settlement or even collapse.

4. Overlooking Constructability

A theoretically optimal hydraulic design may be unbuildable due to space constraints, utility conflicts or excessive equipment requirements. Early coordination with contractors mitigates these risks.

5. Lack of Maintenance Access

Systems should incorporate cleanouts, access points or manholes for inspection and flushing. Designs that fail to consider maintenance ultimately shorten service life and increase operational costs.

Addressing these potential pitfalls early ensures storm sewer systems perform as intended: efficiently, reliably and cost-effectively.

Material Technologies and System Types

Modern storm sewer systems utilize a variety of materials, each offering unique advantages depending on project needs.

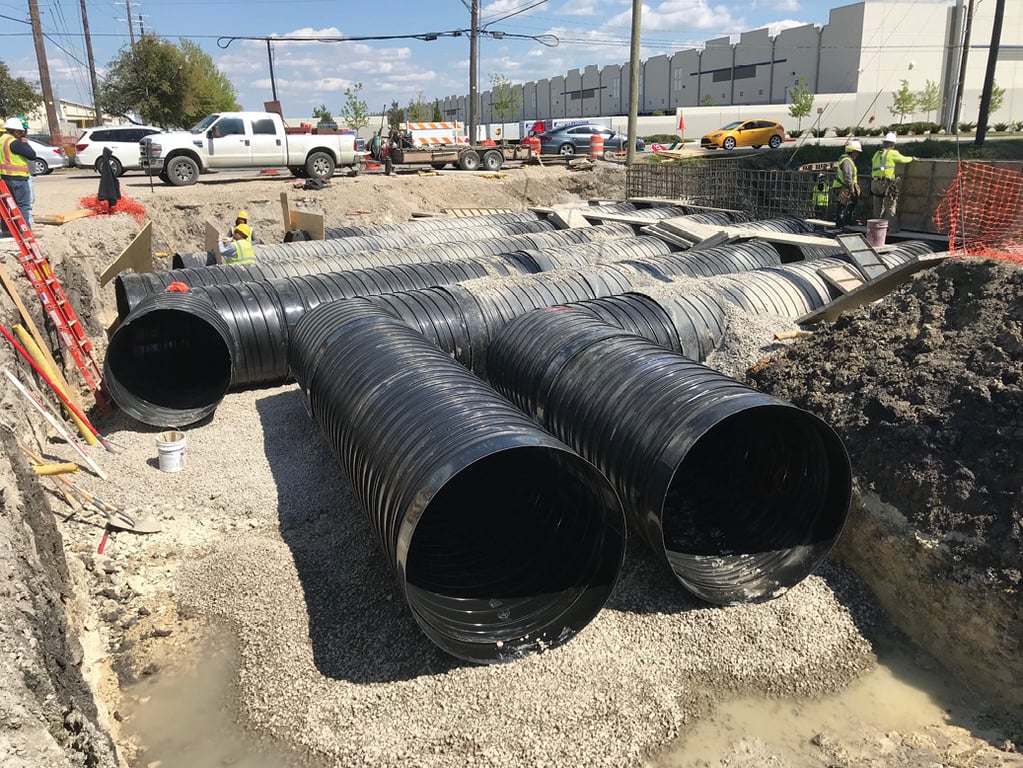

1. Steel Reinforced Polyethylene (SRPE)

SRPE technology represents a significant advancement for large-diameter drainage systems. These pipes combine the structural strength of steel with the corrosion resistance of polyethylene, resulting in a lightweight yet robust solution suitable for deep cover and heavy load conditions.

Key Benefits

• Available in diameters of 30 inches to 120 inches

• Designed for deep-cover applications

- Structural check comparing the calculated Factored Thrust (T) to wall resistance and buckling resistance

• Testable watertight joints that meet or exceed ASTM D3212 and AASHTO MP 20/40 standards

• Smooth interior wall (Manning’s n ≈ 0.012) for excellent flow performance

• Ideal for airports, DOT and large municipal applications

By leveraging composite material design, SRPE offers hydraulic efficiency and structural integrity while minimizing installation equipment requirements.

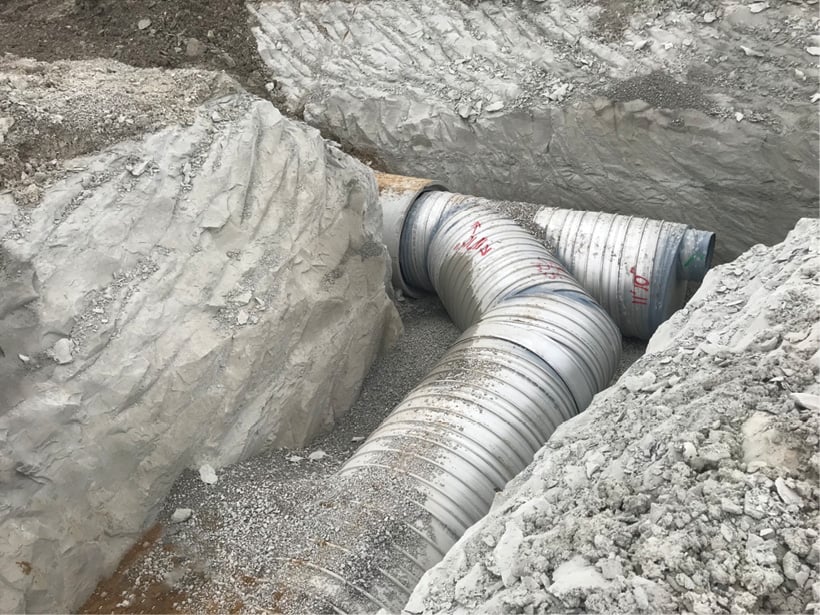

2. Spiral Rib Corrugated Metal Pipe (ULTRA FLO® CMP)

Spiral rib CMP is engineered for high hydraulic efficiency through a smooth interior while the exterior box ribs provide structural strength. This design combines the strength of corrugated metal with improved flow performance comparable to concrete systems, while remaining significantly lighter and easier to handle.

Key Benefits

• Smooth interior (Manning’s n ≈ 0.012) for reduced head loss

• Long lengths that minimize the number of joints

• Availability in coated steel or aluminum for varying soil and water chemistries

• Fabrication flexibility, allowing custom fittings and junctions

• Capable of onsite production for large-diameter systems

Spiral rib CMP is particularly effective where rapid installation and reduced excavation are desired, such as highway, airport or urban projects.

3. Polyvinyl Chloride (PVC) Systems

PVC profile-wall and solid-wall pipes are widely used for storm and sanitary applications. They provide corrosion resistance, structural strength and smooth flow characteristics in a lightweight package.

Key Benefits

• Meets ASTM F949 for PVC profile wall pipe

• Excellent flow efficiency (Manning’s n ≈ 0.009)

• Joint integrity meeting ASTM D3212 standards

• Resistance to scaling and chemical degradation

• Suitable for installations under roadways and deep fills

PVC systems often are favored for municipal projects seeking a long service life and minimal maintenance requirements.

Integration of Design, Materials and Quality Control

A successful storm sewer system is the result of integrated design, where hydraulic performance, material selection, structural capacity and constructability work in unison. A single weak point—whether a joint, bedding or connection—can undermine system reliability.

Best practices include the following:

• Conducting design reviews involving hydraulics, structure and constructability before finalizing plans.

• Using field-verification tools such as deflection testing, mandrel testing or pressure testing to confirm performance.

• Maintaining documentation and inspection reports during installation to ensure compliance with specifications.

• Implementing a lifecycle cost analysis that accounts for maintenance intervals, not just initial installation cost.

When properly integrated, these practices produce storm sewer networks that are reliable, efficient and sustainable for generations.

Conclusion

The next generation of storm sewer design requires more than familiarity with materials; it demands a comprehensive understanding of system performance under changing environmental and urban conditions. Engineers today face greater design complexity, stricter performance standards and heightened expectations for resilience.

By mastering the fundamentals of hydraulics, structural behavior, joint integrity and material durability, designers can deliver systems that not only meet regulatory and economic requirements but also stand resilient against the increasing intensity of storm events.

Resilient infrastructure is not a matter of chance; it’s engineered through informed decisions, interdisciplinary collaboration and a commitment to long-term performance. The storms of tomorrow are inevitable, but with well-engineered pipe systems and thoughtful design practices, communities can be ready to weather them.
